0434590044

Woodhead - Molex
In Stock: 149

Can ship immediately

Pricing:
  • 1$2.93524
  • 1,760$2.79538

Quote It

Technical Details

  • Series:Mini-Fit BMI 43459
  • Package:Tray
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.165" (4.20mm)
  • Number of Positions:10
  • Number of Rows:2
  • Row Spacing - Mating:0.165" (4.20mm)
  • Number of Positions Loaded:All
  • Style:Board to Board or Cable
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Latch Holder
  • Contact Length - Mating:-



  • Contact Length - Post:0.138" (3.50mm)
  • Overall Contact Length:-
  • Insulation Height:0.555" (14.10mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:30.0µin (0.76µm)
  • Contact Finish - Post:Tin
  • Contact Material:Brass
  • Insulation Material:Polyamide (PA66), Nylon 6/6
  • Features:Board Lock
  • Operating Temperature:-
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Natural
  • Current Rating (Amps):-
  • Voltage Rating:-

Related Products


800-10-022-20-004101

CONN HEADER R/A 22POS 2.54MM

800-10-022-20-004101 Datasheet
  • 1: $2.93540
  • 200: $2.56400

892-80-068-20-001101

CONN HEADER R/A 68POS 2.54MM

892-80-068-20-001101 Datasheet
  • 1: $2.93542
  • 190: $2.70316

399-80-132-10-009101

CONN HEADER R/A 32POS 2.54MM

399-80-132-10-009101 Datasheet
  • 1: $2.93580
  • 200: $2.70355

882-70-052-20-001101

CONN HEADER R/A 52POS 2MM

882-70-052-20-001101 Datasheet
  • 1: $2.93600
  • 190: $2.66174

800-10-029-10-002101

CONN HEADER VERT 29POS 2.54MM

800-10-029-10-002101 Datasheet
  • 1: $2.93616
  • 250: $2.56448

800-10-017-66-001101

CONN HEADER VERT 17POS 2.54MM

800-10-017-66-001101 Datasheet
  • 1: $2.93617
  • 300: $2.56447

0438100334

CONN HEADER R/A 10POS 4.2MM

0438100334 Datasheet
  • 1: $2.93633
  • 480: $2.93633

0022282286

CONN HEADER R/A 28POS 2.54MM

0022282286 Datasheet
  • 1: $2.93678
  • 1500: $2.93678

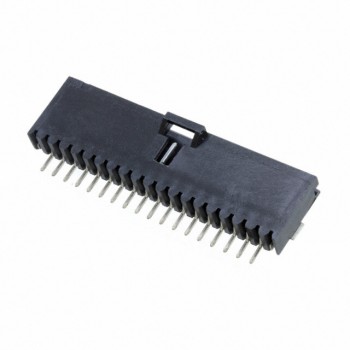

1-147324-7
