In Stock: 138

Can ship immediately

Pricing:
  • 1$2.93859
  • 1,125$2.71713

Quote It

Technical Details

  • Series:AMPMODU Mod II
  • Package:Tray
  • Part Status:Active
  • Connector Type:Header, Breakaway
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:16
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Board or Cable
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole, Right Angle
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.230" (5.84mm)



  • Contact Length - Post:0.120" (3.05mm)
  • Overall Contact Length:-
  • Insulation Height:0.138" (3.50mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:15.0µin (0.38µm)
  • Contact Finish - Post:Tin
  • Contact Material:Copper Alloy
  • Insulation Material:Thermoplastic
  • Features:-
  • Operating Temperature:-65°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):3A
  • Voltage Rating:-

Related Products


0015916059

CONN HEADER SMD R/A 5POS 2.54MM

0015916059 Datasheet
  • 1: $2.93860
  • 500: $2.85464

0740990625

CONN HEADER SMD 5POS 2.54MM

0740990625 Datasheet
  • 1: $2.93860
  • 700: $2.85464

0015911383

CONN HEADER SMD 38POS 2.54MM

0015911383 Datasheet
  • 1: $2.93874
  • 2376: $2.93874

0015911388

CONN HEADER SMD 38POS 2.54MM

0015911388 Datasheet
  • 1: $2.93874
  • 2376: $2.93874

NRPN312MAMP-RC

CONN HEADER SMD 62POS 2MM

NRPN312MAMP-RC Datasheet
  • 1: $2.93886
  • 1000: $ 2.93886

NRPN312MAMS-RC

CONN HEADER SMD 62POS 2MM

NRPN312MAMS-RC Datasheet
  • 1: $2.93886
  • 1000: $ 2.93886

1-644487-2

CONN HEADER VERT 12POS 2.54MM

1-644487-2 Datasheet
  • 1: $2.93938
  • 1250: $2.54493

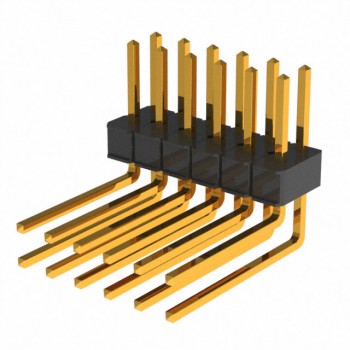

929667-02-06-I
