In Stock: 130

Can ship immediately

Pricing:
  • 1$2.94613
  • 480$2.72404

Quote It

Technical Details

  • Series:Quickie™
  • Package:Tube
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:34
  • Number of Rows:2
  • Row Spacing - Mating:0.100" (2.54mm)
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Latch Lock/Eject Hooks
  • Contact Length - Mating:0.228" (5.80mm)



  • Contact Length - Post:0.114" (2.90mm)
  • Overall Contact Length:-
  • Insulation Height:0.685" (17.40mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold, GXT™
  • Contact Finish Thickness - Mating:30.0µin (0.76µm)
  • Contact Finish - Post:Tin
  • Contact Material:Phosphor Bronze
  • Insulation Material:Thermoplastic, Glass Filled
  • Features:Keying Slot, Mounting Flange
  • Operating Temperature:-
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Gray
  • Current Rating (Amps):-
  • Voltage Rating:-

Related Products


86837-172HLF

CONN HEADER VERT 72POS 2.54MM

  • 1: $2.94613
  • 400: $2.94613

65863-039LF

CONN HEADER VERT 40POS 2.54MM

65863-039LF Datasheet
  • 1: $2.94613
  • 400: $2.94613

850-80-025-30-001101

CONN HEADER SMD 25POS 1.27MM

850-80-025-30-001101 Datasheet
  • 1: $2.94621
  • 190: $2.71305

800-80-040-10-002101

CONN HEADER VERT 40POS 2.54MM

800-80-040-10-002101 Datasheet
  • 1: $2.94640
  • 200: $2.71325

882-70-076-10-001101

CONN HEADER VERT 76POS 2MM

882-70-076-10-001101 Datasheet
  • 1: $2.94658
  • 190: $2.67126

852-80-024-10-002101

CONN HEADER VERT 24POS 1.27MM

852-80-024-10-002101 Datasheet
  • 1: $2.94660
  • 200: $2.71345

351-10-120-00-004101

CONN HEADER VERT 20POS 2.54MM

351-10-120-00-004101 Datasheet
  • 1: $2.94664
  • 250: $2.57364

850-80-024-40-001101

CONN HEADER SMD R/A 24POS 1.27MM

850-80-024-40-001101 Datasheet
  • 1: $2.94700
  • 190: $2.71389

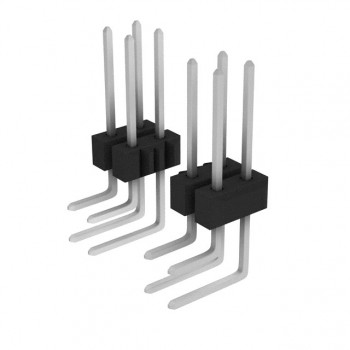

0717640326

CONN HEADER R/A 26POS 2.54MM

0717640326 Datasheet
  • 1: $2.94727
  • 1280: $2.94727

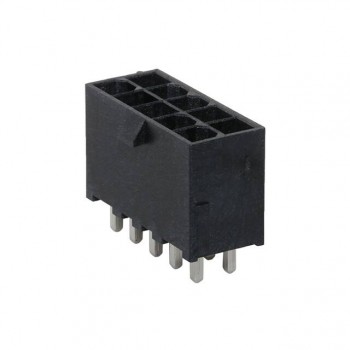

0462076010
