800-80-042-40-001101

Preci-Dip
In Stock: 193

Can ship immediately

Pricing:
  • 1$2.95873
  • 300$2.72497

Quote It

Technical Details

  • Series:800
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:42
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Board
  • Shrouding:Unshrouded
  • Mounting Type:Surface Mount, Right Angle
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.191" (4.85mm)



  • Contact Length - Post:-
  • Overall Contact Length:-
  • Insulation Height:0.100" (2.54mm)
  • Contact Shape:Circular
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:-
  • Contact Finish - Post:Tin
  • Contact Material:Brass
  • Insulation Material:Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
  • Features:-
  • Operating Temperature:-55°C ~ 125°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):3A
  • Voltage Rating:150VDC

Related Products


M80-8532045

DATAMATE L-TEK DIL MALE VERTICAL

  • 1: $2.95945
  • 1000: $2.79850

0741620208

CONN HEADER R/A 8POS 2.54MM

0741620208 Datasheet
  • 1: $2.95974
  • 2160: $2.95974

0741620218

CONN HEADER R/A 18POS 2.54MM

0741620218 Datasheet
  • 1: $2.95989
  • 1080: $2.95989

PBC16DFBN

CONN HEADER VERT 32POS 2.54MM

PBC16DFBN Datasheet
  • 1: $2.96000
  • 10: $2.84200
  • 25: $2.60480

PBC28SFBN

CONN HEADER VERT 28POS 2.54MM

PBC28SFBN Datasheet
  • 1: $2.96000
  • 10: $2.84500
  • 25: $2.60760

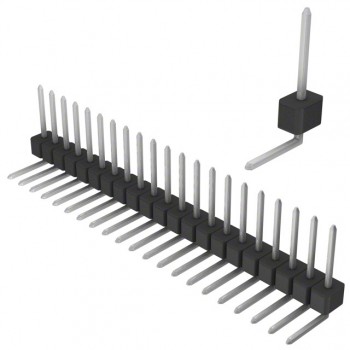

PEC21SGBN
