860-80-046-10-001101
Preci-Dip
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HEADER VERT 46POS 1MM
- CategoryRectangular Connectors - Headers, Male Pins
-
ECAD Model
- Share
In Stock: 119
Can ship immediately
Pricing:
- 1$2.96395
- 110$2.96395
Quote It
Technical Details
- Series:860
- Package:Bulk
- Part Status:Active
- Connector Type:Header
- Contact Type:Male Pin
- Pitch - Mating:0.039" (1.00mm)
- Number of Positions:46
- Number of Rows:1
- Row Spacing - Mating:-
- Number of Positions Loaded:All
- Style:Board to Board
- Shrouding:Unshrouded
- Mounting Type:Through Hole
- Termination:Solder
- Fastening Type:Push-Pull
- Contact Length - Mating:0.086" (2.20mm)
- Contact Length - Post:0.098" (2.50mm)
- Overall Contact Length:0.241" (6.13mm)
- Insulation Height:0.047" (1.20mm)
- Contact Shape:Circular
- Contact Finish - Mating:Tin
- Contact Finish Thickness - Mating:-
- Contact Finish - Post:Tin
- Contact Material:Brass
- Insulation Material:Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
- Features:-
- Operating Temperature:-55°C ~ 125°C
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:Black
- Current Rating (Amps):1A
- Voltage Rating:150VDC
Related Products

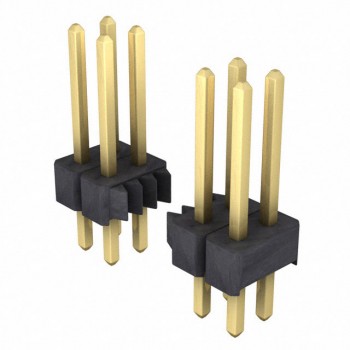

CONN HEADER VERT 66POS 2.54MM
- 1: $2.96479
- 190: $2.68784
SHR SMT HDR
- 1: $2.96487

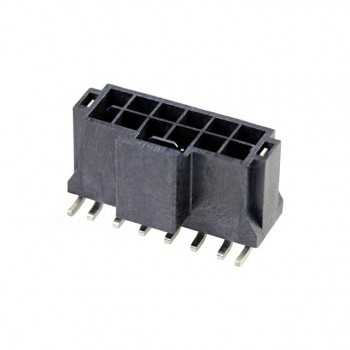

NANO-FIT HDR SMT VT DLR 12CKT 15
