In Stock: 138

Can ship immediately

Pricing:
  • 1$3.00218
  • 500$2.85922

Quote It

Technical Details

  • Series:MTA-156
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.156" (3.96mm)
  • Number of Positions:11
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 1 Wall
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Friction Lock
  • Contact Length - Mating:0.400" (10.16mm)



  • Contact Length - Post:0.175" (4.45mm)
  • Overall Contact Length:0.700" (17.78mm)
  • Insulation Height:0.425" (10.80mm)
  • Contact Shape:Circular
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:15.0µin (0.38µm)
  • Contact Finish - Post:Tin
  • Contact Material:Copper Alloy
  • Insulation Material:Thermoplastic, Glass Filled
  • Features:-
  • Operating Temperature:-55°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Natural
  • Current Rating (Amps):Varies by Wire Gauge
  • Voltage Rating:600VAC

Related Products


4-826631-4

CONN HEADER R/A 44POS 2.54MM

4-826631-4 Datasheet
  • 1: $3.00223
  • 1500: $2.91479

350-80-125-00-012101

CONN HEADER VERT 25POS 1.78MM

350-80-125-00-012101 Datasheet
  • 1: $3.00300
  • 190: $2.76558

800-10-034-10-001101

CONN HEADER VERT 34POS 2.54MM

800-10-034-10-001101 Datasheet
  • 1: $3.00318
  • 150: $3.00318

0713491072

CONN HEADER SMD 12POS 2.54MM

0713491072 Datasheet
  • 1: $3.00324
  • 1104: $3.00324

M80-6650642

CONN HEADER SMD R/A 6POS 2MM

M80-6650642 Datasheet
  • 1: $3.00397
  • 156: $2.86000

860-10-038-10-001101

CONN HEADER VERT 38POS 1MM

860-10-038-10-001101 Datasheet
  • 1: $3.00411
  • 110: $3.00411

SMH100-LPPE-S45-SC-BK

CONN HEADER SMD 45POS 1MM

SMH100-LPPE-S45-SC-BK Datasheet
  • 1: $3.00411
  • 1000: $3.00411

SMH100-LPPE-S45-SD-BK

CONN HEADER SMD 45POS 1MM

SMH100-LPPE-S45-SD-BK Datasheet
  • 1: $3.00411
  • 1000: $ 3.00411

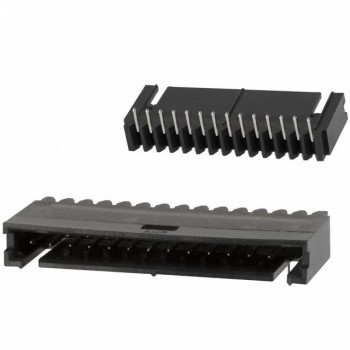

6-102523-2

CONN HEADER R/A 14POS 2.54MM

6-102523-2 Datasheet
  • 1: $3.00455
  • 936: $2.73707

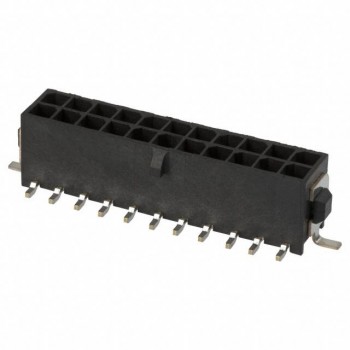

5-794637-2
