0757571282

Woodhead - Molex
In Stock: 183

Can ship immediately

Pricing:
  • 1$3.00817
  • 1,368$3.00817

Quote It

Technical Details

  • Series:MX150 75757
  • Package:Tube
  • Part Status:Active
  • Connector Type:Header, Breakaway
  • Contact Type:Male Blade
  • Pitch - Mating:0.138" (3.50mm)
  • Number of Positions:16
  • Number of Rows:2
  • Row Spacing - Mating:0.236" (6.00mm)
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.441" (11.20mm)



  • Contact Length - Post:0.187" (4.75mm)
  • Overall Contact Length:0.805" (20.44mm)
  • Insulation Height:0.177" (4.50mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:2.00µin (0.051µm)
  • Contact Finish - Post:Tin
  • Contact Material:Cartridge Brass
  • Insulation Material:Liquid Crystal Polymer (LCP), Glass Filled
  • Features:-
  • Operating Temperature:-
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):-
  • Voltage Rating:-

Related Products


802-10-026-10-002101

CONN HEADER VERT 26POS 2.54MM

802-10-026-10-002101 Datasheet
  • 1: $3.00820
  • 228: $2.62763

852-10-018-30-001101

CONN HEADER SMD 18POS 1.27MM

852-10-018-30-001101 Datasheet
  • 1: $3.00820
  • 200: $2.62760

852-10-018-30-002101

CONN HEADER SMD 18POS 1.27MM

852-10-018-30-002101 Datasheet
  • 1: $3.00820
  • 200: $2.62760

0441513001

CONN HEADER R/A 6POS 4.2MM

0441513001 Datasheet
  • 1: $3.00834
  • 2720: $3.00834

350-10-123-01-666101

CONN HEADER VERT 23POS 2.54MM

350-10-123-01-666101 Datasheet
  • 1: $3.00840
  • 200: $2.62780

1375583-8

CONN HEADER SMD 9POS 2.54MM

1375583-8 Datasheet
  • 1: $3.00861
  • 900: $2.83591

57102-F08-12LF

CONN HEADER VERT 24POS 2MM

57102-F08-12LF Datasheet
  • 1: $3.00883
  • 700: $2.78221

98424-F52-42ALF

CONN HEADER SMD 42POS 2MM

98424-F52-42ALF Datasheet
  • 1: $3.00883
  • 600: $2.78222

0026613090

CONN HEADER R/A 9POS 3.96MM

0026613090 Datasheet
  • 1: $3.00888
  • 2000: $3.00888

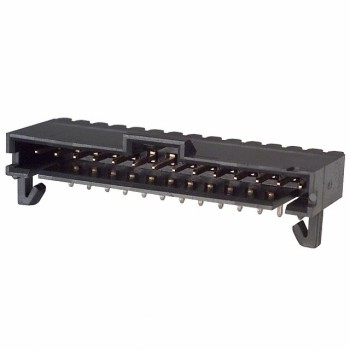

6-103904-3
