957250-6002-AR

3M
In Stock: 100

Can ship immediately

Pricing:
  • 1$3.0264
  • 10$2.90524
  • 100$2.42112
  • 500$2.05795
  • 1,000$1.75531

Quote It

Technical Details

  • Series:957
  • Package:Tray
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.079" (2.00mm)
  • Number of Positions:50
  • Number of Rows:2
  • Row Spacing - Mating:0.079" (2.00mm)
  • Number of Positions Loaded:All
  • Style:Board to Board
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:-



  • Contact Length - Post:0.118" (3.00mm)
  • Overall Contact Length:-
  • Insulation Height:0.220" (5.60mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:Flash
  • Contact Finish - Post:Tin
  • Contact Material:Copper Alloy
  • Insulation Material:Thermoplastic
  • Features:Keying Slot
  • Operating Temperature:-40°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):1A
  • Voltage Rating:-

Related Products


4-794628-4

CONN HEADER SMD R/A 14POS 3MM

4-794628-4 Datasheet
  • 1: $3.02642
  • 450: $3.02642

0440680101

CONN HEADER VERT 6POS 4.2MM

0440680101 Datasheet
  • 1: $3.02666
  • 2240: $3.02666

10142708-08000LF

MINITEKPWR 5.70MM VERTICAL THROU

  • 1: $3.02688

0347730141

CONN HEADER R/A 14POS

0347730141 Datasheet
  • 1: $3.02694
  • 1680: $3.02694

800-80-045-10-001101

CONN HEADER VERT 45POS 2.54MM

800-80-045-10-001101 Datasheet
  • 1: $3.02733
  • 300: $2.78787

802-V3-016-32-002191

CONN HEADER SMD 16POS 2.54MM

  • 1: $3.02736
  • 550: $2.64418

350-80-133-00-019101

CONN HEADER VERT 33POS 2.54MM

350-80-133-00-019101 Datasheet
  • 1: $3.02758
  • 190: $2.78821

399-80-133-10-009101

CONN HEADER R/A 33POS 2.54MM

399-80-133-10-009101 Datasheet
  • 1: $3.02758
  • 190: $2.78821

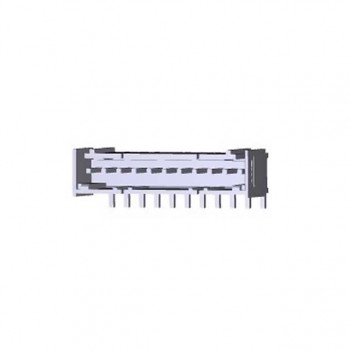

3-647125-1
