In Stock: 151

Can ship immediately

Pricing:
  • 1$3.03
  • 10$2.90664
  • 25$2.66424
  • 50$2.54304
  • 100$2.42184
  • 250$2.11914
  • 500$2.05858

Quote It

Technical Details

  • Series:AMPMODU Mod II
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header, Breakaway
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:32
  • Number of Rows:2
  • Row Spacing - Mating:0.100" (2.54mm)
  • Number of Positions Loaded:All
  • Style:Board to Board or Cable
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole, Right Angle
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.230" (5.84mm)



  • Contact Length - Post:0.120" (3.05mm)
  • Overall Contact Length:-
  • Insulation Height:0.238" (6.05mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:15.0µin (0.38µm)
  • Contact Finish - Post:Tin
  • Contact Material:Copper Alloy
  • Insulation Material:Thermoplastic
  • Features:-
  • Operating Temperature:-65°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):3A
  • Voltage Rating:-

Related Products


929710-10-14-RK

CONN HEADER VERT 28POS 2.54MM

929710-10-14-RK Datasheet
  • 1: $3.03000
  • 10: $2.91200
  • 25: $2.66920

929710-01-14-RK

CONN HEADER VERT 28POS 2.54MM

929710-01-14-RK Datasheet
  • 1: $3.03000
  • 10: $2.91200
  • 25: $2.66920

929710-06-14-RK

CONN HEADER VERT 28POS 2.54MM

929710-06-14-RK Datasheet
  • 1: $3.03000
  • 10: $2.91200
  • 25: $2.66920

929710-11-14-RK

CONN HEADER VERT 28POS 2.54MM

929710-11-14-RK Datasheet
  • 1: $3.03000
  • 10: $2.91200
  • 25: $2.66920

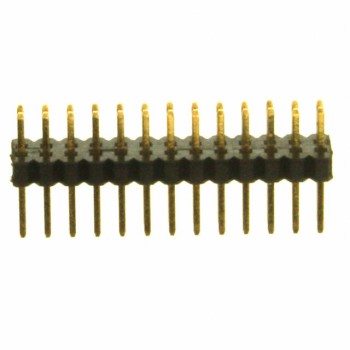

SMH100-LPSE-D13-ST-BK

CONN HEADER VERT 26POS 1MM

SMH100-LPSE-D13-ST-BK Datasheet
  • 1: $3.03021
  • 1000: $3.03021

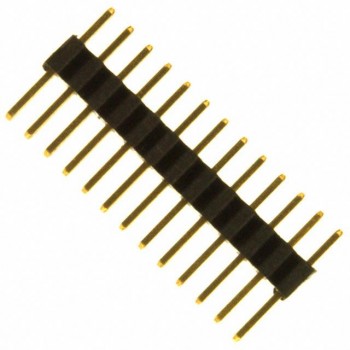

SMH150-LPSE-D13-ST-BK
