In Stock: 160

Can ship immediately

Pricing:
  • 1$3.06893
  • 1,000$2.83765

Quote It

Technical Details

  • Series:BERGSTIK®
  • Package:Bag
  • Part Status:Active
  • Connector Type:Header, Breakaway
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:10
  • Number of Rows:2
  • Row Spacing - Mating:0.100" (2.54mm)
  • Number of Positions Loaded:All
  • Style:Board to Board or Cable
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.130" (3.30mm)



  • Contact Length - Post:0.130" (3.30mm)
  • Overall Contact Length:0.360" (9.15mm)
  • Insulation Height:0.100" (2.54mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold, GXT™
  • Contact Finish Thickness - Mating:30.0µin (0.76µm)
  • Contact Finish - Post:-
  • Contact Material:Phosphor Bronze
  • Insulation Material:Thermoplastic
  • Features:-
  • Operating Temperature:-
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):-
  • Voltage Rating:-

Related Products


2-147324-0

CONN HEADER SMD R/A 21POS 2.54MM

2-147324-0 Datasheet
  • 1: $3.06899
  • 900: $2.89281

800-10-023-20-004101

CONN HEADER R/A 23POS 2.54MM

800-10-023-20-004101 Datasheet
  • 1: $3.06900
  • 190: $2.68053

65823-003

CONN HEADER R/A 10POS 2.54MM

65823-003 Datasheet
  • 1: $3.06907
  • 1200: $3.06907

4-644896-0

CONN HEADER VERT 10POS 2.54MM

4-644896-0 Datasheet
  • 1: $3.06930
  • 500: $2.84632

76383-418LF

CONN HEADER R/A 36POS 2.54MM

76383-418LF Datasheet
  • 1: $3.06960
  • 176: $2.83818

75844-150-34LF

CONN HEADER VERT 34POS 2.54MM

75844-150-34LF Datasheet
  • 1: $3.06960
  • 200: $2.83820

91687-322LF

CONN HEADER VERT 44POS 2.54MM

91687-322LF Datasheet
  • 1: $3.06963
  • 108: $2.83824

53612-G40-8LF

CONN HEADER SMD 40POS 2.54MM

  • 1: $3.06963
  • 800: $3.06963

0010897620

CONN HEADER VERT 62POS 2.54MM

0010897620 Datasheet
  • 1: $3.06979
  • 1400: $3.06979

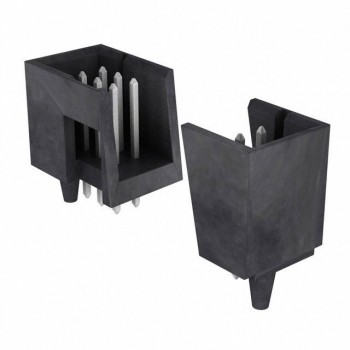

0015477532
