In Stock: 170

Can ship immediately

Pricing:
  • 1$3.07242
  • 600$2.84087

Quote It

Technical Details

  • Series:BERGSTIK®
  • Package:Bag
  • Part Status:Active
  • Connector Type:Header, Breakaway
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:16
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Board
  • Shrouding:Unshrouded
  • Mounting Type:Surface Mount
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.230" (5.84mm)



  • Contact Length - Post:-
  • Overall Contact Length:-
  • Insulation Height:0.100" (2.54mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold, GXT™
  • Contact Finish Thickness - Mating:30.0µin (0.76µm)
  • Contact Finish - Post:Tin
  • Contact Material:Phosphor Bronze
  • Insulation Material:Thermoplastic
  • Features:-
  • Operating Temperature:-
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):-
  • Voltage Rating:-

Related Products


93690-105-60LF

CONN HEADER VERT 60POS 2.54MM

93690-105-60LF Datasheet
  • 1: $3.07242
  • 500: $2.84088

0438794000

CONN HEADER VERT 6POS 4.2MM

0438794000 Datasheet
  • 1: $3.07258
  • 2240: $3.07258

0438796010

CONN HEADER VERT 6POS 4.2MM

0438796010 Datasheet
  • 1: $3.07272
  • 2240: $3.07272

5-103164-6

CONN HEADER R/A 16POS 2.54MM

5-103164-6 Datasheet
  • 1: $3.07312
  • 1456: $2.58321

4-641215-6

CONN HEADER VERT 16POS 2.54MM

4-641215-6 Datasheet
  • 1: $3.07354
  • 1000: $3.07354

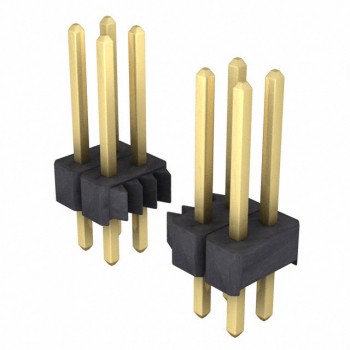

892-70-074-10-003101
