802-10-024-30-001101

Preci-Dip
In Stock: 197

Can ship immediately

Pricing:
  • 1$3.07719
  • 192$2.68781

Quote It

Technical Details

  • Series:802
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:24
  • Number of Rows:2
  • Row Spacing - Mating:0.100" (2.54mm)
  • Number of Positions Loaded:All
  • Style:Board to Board
  • Shrouding:Unshrouded
  • Mounting Type:Surface Mount
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.191" (4.85mm)



  • Contact Length - Post:-
  • Overall Contact Length:-
  • Insulation Height:0.110" (2.79mm)
  • Contact Shape:Circular
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:10.0µin (0.25µm)
  • Contact Finish - Post:Gold
  • Contact Material:Brass
  • Insulation Material:Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
  • Features:-
  • Operating Temperature:-55°C ~ 125°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):3A
  • Voltage Rating:150VDC

Related Products


0015911561

CONN HEADER SMD 56POS 2.54MM

0015911561 Datasheet
  • 1: $3.07720
  • 1512: $3.07720

802-10-028-20-001101

CONN HEADER R/A 28POS 2.54MM

802-10-028-20-001101 Datasheet
  • 1: $3.07754
  • 256: $2.68801

850-80-028-10-001101

CONN HEADER VERT 28POS 1.27MM

850-80-028-10-001101 Datasheet
  • 1: $3.07761
  • 180: $2.83428

350-80-161-01-714101

CONN HEADER VERT 31POS 5.08MM

350-80-161-01-714101 Datasheet
  • 1: $3.07861
  • 180: $2.83506

351-10-108-00-016101

CONN HEADER VERT 8POS 2.54MM

351-10-108-00-016101 Datasheet
  • 1: $3.07900
  • 190: $2.68921

451-10-208-00-016101

CONN HEADER VERT 8POS 2.54MM

451-10-208-00-016101 Datasheet
  • 1: $3.07900
  • 190: $2.68921

0015910307

CONN HEADER SMD 30POS 2.54MM

0015910307 Datasheet
  • 1: $3.07944
  • 3024: $2.58215

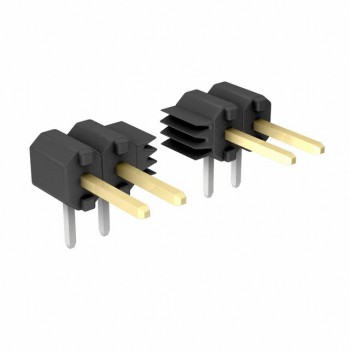

A2-20PA-2.54DS(71)

CONN HEADER R/A 20POS 2.54MM

A2-20PA-2.54DS(71) Datasheet
  • 1: $3.08000
  • 10: $2.95175
  • 25: $2.70577

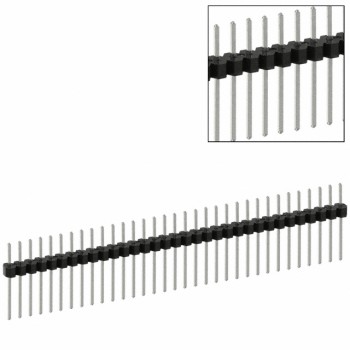

PEC33SAEN

CONN HEADER VERT 33POS 2.54MM

PEC33SAEN Datasheet
  • 1: $3.08000
  • 10: $2.95700
  • 25: $2.71040

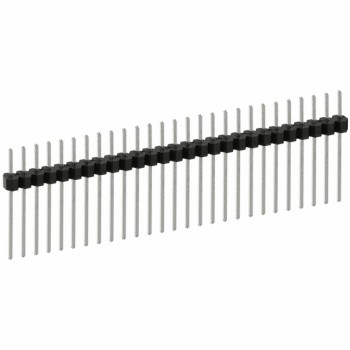

PEC27SAFN
