In Stock: 127

Can ship immediately

Pricing:
  • 1$3.20203
  • 8,400$2.81948

Quote It

Technical Details

  • Series:MR (Miniature Rectangular)
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.165" (4.20mm)
  • Number of Positions:12
  • Number of Rows:3
  • Row Spacing - Mating:0.165" (4.20mm)
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Latch Lock
  • Contact Length - Mating:0.220" (5.59mm)



  • Contact Length - Post:0.150" (3.81mm)
  • Overall Contact Length:-
  • Insulation Height:0.531" (13.50mm)
  • Contact Shape:Circular
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:-
  • Contact Finish - Post:Tin
  • Contact Material:Phosphor Bronze
  • Insulation Material:Polyamide (PA), Nylon
  • Features:-
  • Operating Temperature:-55°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black, Red
  • Current Rating (Amps):6A
  • Voltage Rating:250VAC

Related Products


65823-366

CONN HEADER R/A 10POS 2.54MM

65823-366 Datasheet
  • 1: $3.20215
  • 800: $3.20215

800-80-059-10-002101

CONN HEADER VERT 59POS 2.54MM

800-80-059-10-002101 Datasheet
  • 1: $3.20215
  • 130: $3.20215

800-10-024-20-004101

CONN HEADER R/A 24POS 2.54MM

800-10-024-20-004101 Datasheet
  • 1: $3.20242
  • 190: $2.79711

141A10749X

CONN HEADER R/A 14POS 2.54MM

141A10749X Datasheet
  • 1: $3.20250
  • 300: $3.20250

141A10929X

CONN HEADER R/A 14POS 2.54MM

  • 1: $3.20250
  • 300: $3.20250

1054312407

NANO-FIT HDR SMT VT SGL 7CKT 30A

  • 1: $3.20285

20021221-00060C4LF

CONN HEADER SMD 60POS 1.27MM

  • 1: $3.20306
  • 2000: $3.20306

SMH100-LPPE-S48-SC-BK

CONN HEADER SMD 48POS 1MM

SMH100-LPPE-S48-SC-BK Datasheet
  • 1: $3.20378
  • 1000: $ 3.20378

SMH100-LPPE-S48-SD-BK

CONN HEADER SMD 48POS 1MM

SMH100-LPPE-S48-SD-BK Datasheet
  • 1: $3.20378
  • 1000: $ 3.20378

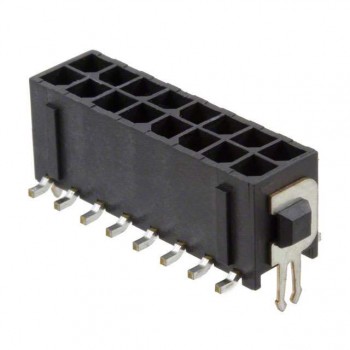

4-794634-6
