894-80-090-10-001101

Preci-Dip
In Stock: 107

Can ship immediately

Pricing:
  • 1$3.206
  • 200$2.95245

Quote It

Technical Details

  • Series:894
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:90
  • Number of Rows:3
  • Row Spacing - Mating:0.100" (2.54mm)
  • Number of Positions Loaded:All
  • Style:Board to Board
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.236" (6.00mm)



  • Contact Length - Post:0.122" (3.10mm)
  • Overall Contact Length:0.458" (11.64mm)
  • Insulation Height:0.100" (2.54mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:-
  • Contact Finish - Post:Tin
  • Contact Material:Brass
  • Insulation Material:Polyamide (PA), Nylon, Glass Filled
  • Features:-
  • Operating Temperature:-55°C ~ 125°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):3A
  • Voltage Rating:150VDC

Related Products


77313-827-68LF

CONN HEADER VERT 68POS 2.54MM

77313-827-68LF Datasheet
  • 1: $3.20600
  • 300: $2.96417

104477-2

CONN HEADER R/A 20POS 1.27MM

104477-2 Datasheet
  • 1: $3.20600
  • 972: $3.01000

0025024018

CONN HEADER VERT 18POS 2.54MM

0025024018 Datasheet
  • 1: $3.20614
  • 1620: $3.20614

1-641119-1

CONN HEADER VERT 11POS 3.96MM

1-641119-1 Datasheet
  • 1: $3.20626
  • 500: $3.05358

3-644898-8

CONN HEADER R/A 8POS 2.54MM

3-644898-8 Datasheet
  • 1: $3.20630
  • 500: $2.91484

0878314028

CONN HEADER VERT 40POS 2MM

0878314028 Datasheet
  • 1: $3.20697
  • 1200: $3.20697

800-10-036-40-001101

CONN HEADER SMD R/A 36POS 2.54MM

800-10-036-40-001101 Datasheet
  • 1: $3.20740
  • 140: $3.20740

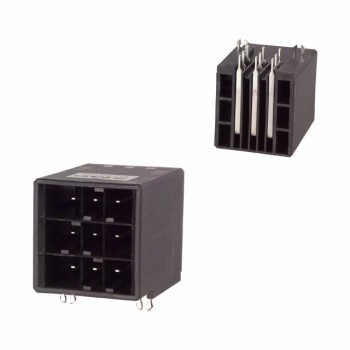

5-1123624-5

CONN HEADER R/A 9POS 5.08MM

5-1123624-5 Datasheet
  • 1: $3.20796
  • 1520: $2.22883

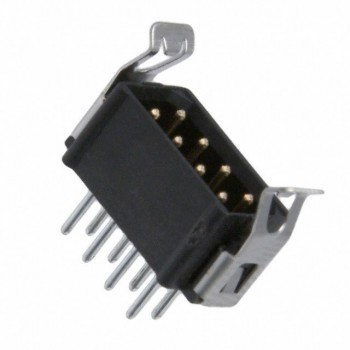

M80-8670805
