In Stock: 111

Can ship immediately

Pricing:
  • 1$3.21028
  • 900$3.026

Quote It

Technical Details

  • Series:AMPMODU MTE
  • Package:Tape & Reel (TR)
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:11
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Board or Cable
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Surface Mount
  • Termination:Solder
  • Fastening Type:Latch Holder
  • Contact Length - Mating:0.230" (5.84mm)



  • Contact Length - Post:-
  • Overall Contact Length:-
  • Insulation Height:0.535" (13.60mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Tin-Lead
  • Contact Finish Thickness - Mating:100.0µin (2.54µm)
  • Contact Finish - Post:Tin-Lead
  • Contact Material:Brass
  • Insulation Material:Thermoplastic
  • Features:Board Lock, Keying Slot
  • Operating Temperature:-65°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):3A
  • Voltage Rating:-

Related Products


5-794621-0

CONN HEADER SMD R/A 20POS 3MM

5-794621-0 Datasheet
  • 1: $3.21070
  • 300: $3.21070

0015916089

CONN HEADER SMD R/A 8POS 2.54MM

0015916089 Datasheet
  • 1: $3.21090
  • 500: $3.11916

350-80-135-00-019101

CONN HEADER VERT 35POS 2.54MM

350-80-135-00-019101 Datasheet
  • 1: $3.21100
  • 180: $2.95706

399-80-135-10-009101

CONN HEADER R/A 35POS 2.54MM

399-80-135-10-009101 Datasheet
  • 1: $3.21100
  • 180: $2.95706

5-147115-6

CONN HEADER SMD 16POS 2.54MM

5-147115-6 Datasheet
  • 1: $3.21108
  • 500: $2.96910

800-80-035-65-001101

CONN HEADER VERT 35POS 2.54MM

800-80-035-65-001101 Datasheet
  • 1: $3.21131
  • 130: $3.21131

1719770207

SL LCP RTA HDR ASY PEG SMT 30AU

  • 1: $3.21143

1-147323-3

CONN HEADER SMD R/A 14POS 2.54MM

1-147323-3 Datasheet
  • 1: $3.21147
  • 600: $3.02712

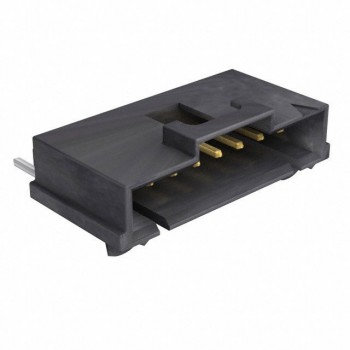

0015917081

CONN HEADER SMD R/A 8POS 2.54MM

0015917081 Datasheet
  • 1: $3.21160
  • 500: $3.11984

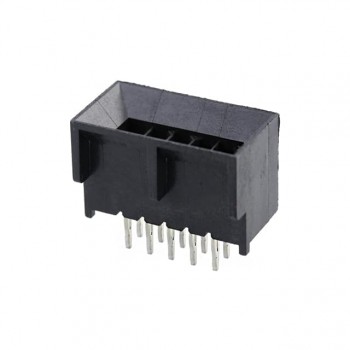

0452801053
