In Stock: 197

Can ship immediately

Pricing:
  • 1$3.22123

Quote It

Technical Details

  • Series:AMPMODU
  • Package:Tape & Reel (TR)
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.079" (2.00mm)
  • Number of Positions:40
  • Number of Rows:2
  • Row Spacing - Mating:0.079" (2.00mm)
  • Number of Positions Loaded:All
  • Style:Board to Board or Cable
  • Shrouding:Shrouded - 2 Wall
  • Mounting Type:Through Hole, Right Angle
  • Termination:Solder
  • Fastening Type:Detent Lock
  • Contact Length - Mating:0.146" (3.70mm)



  • Contact Length - Post:0.098" (2.50mm)
  • Overall Contact Length:-
  • Insulation Height:0.240" (6.10mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:30.0µin (0.76µm)
  • Contact Finish - Post:Tin
  • Contact Material:Copper Alloy
  • Insulation Material:Thermoplastic
  • Features:-
  • Operating Temperature:-40°C ~ 125°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):2A
  • Voltage Rating:125VAC/DC

Related Products


350-80-147-01-899101

CONN HEADER SMD 47POS 2.54MM

350-80-147-01-899101 Datasheet
  • 1: $3.22139
  • 180: $2.96678

1054312208

NANO-FIT HDR SMT VT SGL 8CKT 15A

  • 1: $3.22175

15150442601000

HAR-FLEX ANGLED MALE, 44PIN, PL1

  • 1: $3.22207

0705630052

CONN HEADER VERT 18POS 2.54MM

0705630052 Datasheet
  • 1: $3.22231
  • 7800: $3.22231

0015915569

CONN HEADER SMD 56POS 2.54MM

0015915569 Datasheet
  • 1: $3.22294
  • 1512: $3.22294

0705510058

CONN HEADER R/A 24POS 2.54MM

0705510058 Datasheet
  • 1: $3.22297
  • 640: $3.13089

350-80-138-01-666101

CONN HEADER VERT 38POS 2.54MM

350-80-138-01-666101 Datasheet
  • 1: $3.22322
  • 180: $2.96839

NRPN342MAMP-RC

CONN HEADER SMD 68POS 2MM

NRPN342MAMP-RC Datasheet
  • 1: $3.22335
  • 1000: $ 3.22335

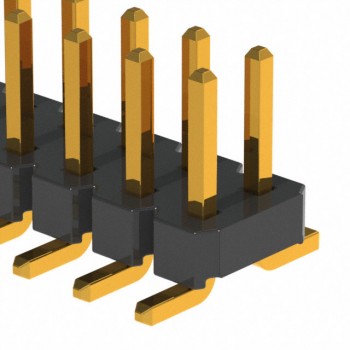

NRPN342MAMS-RC
