830-10-027-10-001101

Preci-Dip
In Stock: 119

Can ship immediately

Pricing:
  • 1$3.225
  • 180$2.81689

Quote It

Technical Details

  • Series:830
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.079" (2.00mm)
  • Number of Positions:27
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Board
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.141" (3.60mm)



  • Contact Length - Post:0.114" (2.90mm)
  • Overall Contact Length:0.394" (10.00mm)
  • Insulation Height:0.110" (2.79mm)
  • Contact Shape:Circular
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:10.0µin (0.25µm)
  • Contact Finish - Post:Gold
  • Contact Material:Brass
  • Insulation Material:Liquid Crystal Polymer (LCP), Glass Filled
  • Features:-
  • Operating Temperature:-55°C ~ 125°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):3A
  • Voltage Rating:150VDC

Related Products


800-80-042-30-001101

CONN HEADER SMD 42POS 2.54MM

800-80-042-30-001101 Datasheet
  • 1: $3.22596
  • 250: $2.97080

800-80-038-20-004101

CONN HEADER R/A 38POS 2.54MM

800-80-038-20-004101 Datasheet
  • 1: $3.22618
  • 170: $2.97100

6-146257-2

CONN HEADER VERT 24POS 2.54MM

6-146257-2 Datasheet
  • 1: $3.22677
  • 600: $2.98362

69155-116

CONN HEADER R/A 16POS 2.54MM

69155-116 Datasheet
  • 1: $3.22698
  • 1400: $3.22698

0702800664

CONN HEADER VERT 72POS 2.54MM

0702800664 Datasheet
  • 1: $3.22698
  • 1000: $3.22698

4-647075-2

CONN HEADER VERT 12POS 2.54MM

4-647075-2 Datasheet
  • 1: $3.22730
  • 500: $2.79418

20021221-10060C4LF

CONN HEADER SMD 60POS 1.27MM

  • 1: $3.22742
  • 2000: $3.22742

10075025-F01-50ULF

CONN HEADER VERT 50POS 2MM

10075025-F01-50ULF Datasheet
  • 1: $3.22769
  • 264: $2.98457

98414-F08-34ULF

CONN HEADER VERT 34POS 2MM

98414-F08-34ULF Datasheet
  • 1: $3.22769
  • 360: $2.98459

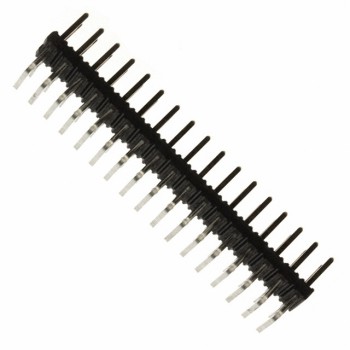

98423-G61-17LF
