A1-26PA-2.54DS(71)

Hirose
In Stock: 178

Can ship immediately

Pricing:
  • 1$3.234

Quote It

Technical Details

  • Series:A1
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:26
  • Number of Rows:2
  • Row Spacing - Mating:0.100" (2.54mm)
  • Number of Positions Loaded:All
  • Style:Board to Board or Cable
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole, Right Angle
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.236" (6.00mm)



  • Contact Length - Post:0.118" (3.00mm)
  • Overall Contact Length:-
  • Insulation Height:0.236" (6.00mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:8.00µin (0.203µm)
  • Contact Finish - Post:Tin
  • Contact Material:Brass
  • Insulation Material:Polybutylene Terephthalate (PBT)
  • Features:-
  • Operating Temperature:-55°C ~ 85°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):3A
  • Voltage Rating:200V

Related Products


894-80-075-10-002101

CONN HEADER VERT 75POS 2.54MM

  • 1: $3.23418
  • 170: $2.97853

894-70-072-10-002101

CONN HEADER VERT 72POS 2.54MM

  • 1: $3.23422
  • 180: $2.93206

4-794634-8

CONN HEADER SMD 18POS 3MM

4-794634-8 Datasheet
  • 1: $3.23437
  • 350: $3.23437

830-10-018-30-001101

CONN HEADER SMD 18POS 2MM

830-10-018-30-001101 Datasheet
  • 1: $3.23439
  • 180: $2.82500

68668-015LF

CONN HEADER R/A 34POS 2.54MM

68668-015LF Datasheet
  • 1: $3.23485
  • 800: $3.20898

1-826470-1

CONN HEADER R/A 22POS 2.54MM

  • 1: $3.23491
  • 1200: $2.99970

0741620220

CONN HEADER R/A 20POS 2.54MM

0741620220 Datasheet
  • 1: $3.23553
  • 1026: $3.23553

0015800243

CONN HEADER VERT 24POS 2.54MM

0015800243 Datasheet
  • 1: $3.23610
  • 1152: $3.23610

350-10-124-00-019101

CONN HEADER VERT 24POS 2.54MM

350-10-124-00-019101 Datasheet
  • 1: $3.23639
  • 180: $2.82678

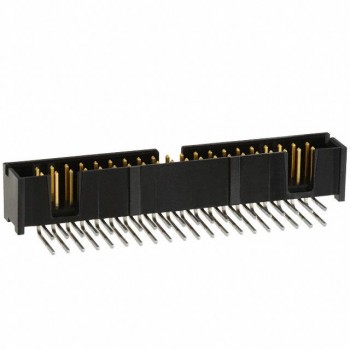

103310-8
