0702871224

Woodhead - Molex
In Stock: 141

Can ship immediately

Pricing:
  • 1$3.23713
  • 1,400$3.23713

Quote It

Technical Details

  • Series:C-Grid 70287
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header, Breakaway
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:60
  • Number of Rows:2
  • Row Spacing - Mating:0.100" (2.54mm)
  • Number of Positions Loaded:All
  • Style:Board to Board or Cable
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole
  • Termination:Kinked Pin, Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.240" (6.10mm)



  • Contact Length - Post:0.125" (3.18mm)
  • Overall Contact Length:0.455" (11.56mm)
  • Insulation Height:0.090" (2.29mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:30.0µin (0.76µm)
  • Contact Finish - Post:Tin
  • Contact Material:Copper Alloy
  • Insulation Material:Liquid Crystal Polymer (LCP), Glass Filled
  • Features:-
  • Operating Temperature:-
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):-
  • Voltage Rating:-

Related Products


6-147323-0

CONN HEADER SMD R/A 11POS 2.54MM

6-147323-0 Datasheet
  • 1: $3.23717
  • 600: $3.05135

0901310782

CONN HEADER VERT 44POS 2.54MM

0901310782 Datasheet
  • 1: $3.23717
  • 2800: $3.23716

830-80-034-20-001101

CONN HEADER R/A 34POS 2MM

830-80-034-20-001101 Datasheet
  • 1: $3.23741
  • 170: $2.98153

830-80-034-40-001101

CONN HEADER SMD R/A 34POS 2MM

830-80-034-40-001101 Datasheet
  • 1: $3.23741
  • 170: $2.98153

350-80-163-01-609101

CONN HEADER VERT 32POS 5.08MM

350-80-163-01-609101 Datasheet
  • 1: $3.23759
  • 170: $2.98171

1-104809-1

CONN HEADER VERT 12POS 2.54MM

1-104809-1 Datasheet
  • 1: $3.23778
  • 1152: $3.05190

800-80-048-20-001101

CONN HEADER R/A 48POS 2.54MM

800-80-048-20-001101 Datasheet
  • 1: $3.23784
  • 250: $2.98176

850-80-023-40-251101

CONN HEADER SMD R/A 23POS 1.27MM

850-80-023-40-251101 Datasheet
  • 1: $3.23800
  • 170: $2.98212

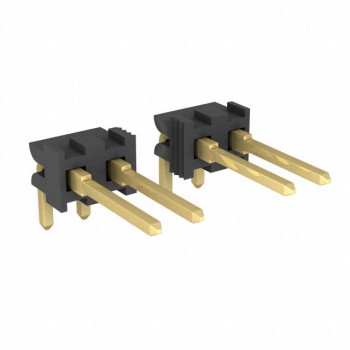

87233-8
