CWN-550-40-0000

CW Industries
In Stock: 130

Can ship immediately

Pricing:
  • 1$3.24
  • 100$3.24

Quote It

Technical Details

  • Series:CWN
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:40
  • Number of Rows:2
  • Row Spacing - Mating:0.100" (2.54mm)
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.240" (6.10mm)



  • Contact Length - Post:0.090" (2.29mm)
  • Overall Contact Length:-
  • Insulation Height:0.681" (17.30mm)
  • Contact Shape:Circular
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:10.0µin (0.25µm)
  • Contact Finish - Post:Nickel
  • Contact Material:Phosphor Bronze
  • Insulation Material:Thermoplastic
  • Features:Keying Slot, Mounting Flange
  • Operating Temperature:-55°C ~ 125°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Blue
  • Current Rating (Amps):1A
  • Voltage Rating:-

Related Products


MDF7C-26DP-2.54DSA(95)

CONN HDR 26POS 0.1 STACK T/H TIN

  • 1: $3.24000

0015910487

CONN HEADER SMD 48POS 2.54MM

0015910487 Datasheet
  • 1: $3.24030
  • 1728: $3.24030

95278-102A40LF

CONN HEADER SMD 40POS 2.54MM

95278-102A40LF Datasheet
  • 1: $3.24037
  • 600: $2.99608

95278-402A40LF

CONN HEADER SMD 40POS 2.54MM

95278-402A40LF Datasheet
  • 1: $3.24037
  • 600: $2.99608

98401-102A40LF

CONN HEADER SMD 40POS 2.54MM

98401-102A40LF Datasheet
  • 1: $3.24037
  • 600: $2.99608

54202-G0820LF

CONN HEADER SMD 40POS 2.54MM

  • 1: $3.24037
  • 600: $3.24037

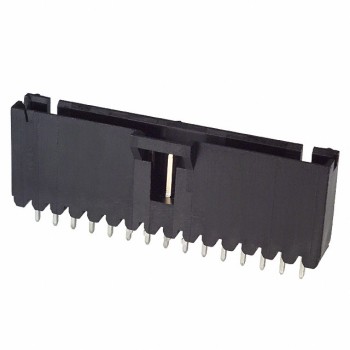

1-103670-4
