SBH51-LPSE-D20-SM-BK

Sullins Connector Solutions
In Stock: 144

Can ship immediately

Pricing:
  • 1$3.24293
  • 1,000$3.24293

Quote It

Technical Details

  • Series:SBH51
  • Package:Tube
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.039" (1.00mm)
  • Number of Positions:40
  • Number of Rows:2
  • Row Spacing - Mating:0.039" (1.00mm)
  • Number of Positions Loaded:All
  • Style:Board to Board
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Surface Mount
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:-



  • Contact Length - Post:-
  • Overall Contact Length:-
  • Insulation Height:0.134" (3.40mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:10.0µin (0.25µm)
  • Contact Finish - Post:Gold
  • Contact Material:Phosphor Bronze
  • Insulation Material:Liquid Crystal Polymer (LCP)
  • Features:-
  • Operating Temperature:-40°C ~ 125°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):1A per Contact
  • Voltage Rating:-

Related Products


10075024-F01-24ULF

CONN HEADER VERT 48POS 2MM

10075024-F01-24ULF Datasheet
  • 1: $3.24321
  • 240: $2.99879

57102-F06-24ULF

CONN HEADER VERT 48POS 2MM

57102-F06-24ULF Datasheet
  • 1: $3.24321
  • 240: $2.99879

57102-G06-23ULF

CONN HEADER VERT 46POS 2MM

57102-G06-23ULF Datasheet
  • 1: $3.24321
  • 240: $2.99879

350-80-127-00-012101

CONN HEADER VERT 27POS 1.78MM

350-80-127-00-012101 Datasheet
  • 1: $3.24341
  • 170: $2.98700

802-80-048-30-480101

CONN HEADER SMD 48POS 2.54MM

802-80-048-30-480101 Datasheet
  • 1: $3.24459
  • 170: $2.98818

316516-3

CONN HEADER VERT 12POS 5.08MM

316516-3 Datasheet
  • 1: $3.24551
  • 5400: $2.50692

2-147324-6

CONN HEADER SMD R/A 10POS 2.54MM

2-147324-6 Datasheet
  • 1: $3.24598
  • 1200: $2.17342


0010977366

CONN HEADER VERT 36POS 2.54MM

0010977366 Datasheet
  • 1: $3.24646
  • 2100: $3.24646

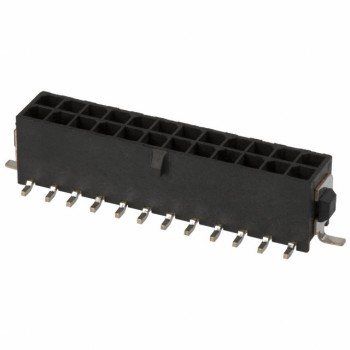

5-794637-4
