929710-10-15-RK

3M
In Stock: 125

Can ship immediately

Pricing:
  • 1$3.25
  • 10$3.12
  • 25$2.86
  • 50$2.73
  • 100$2.6
  • 250$2.275
  • 500$2.21

Quote It

Technical Details

  • Series:929
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:30
  • Number of Rows:2
  • Row Spacing - Mating:0.100" (2.54mm)
  • Number of Positions Loaded:All
  • Style:Board to Board
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.318" (8.08mm)



  • Contact Length - Post:0.175" (4.45mm)
  • Overall Contact Length:0.593" (15.07mm)
  • Insulation Height:0.100" (2.54mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:200.0µin (5.08µm)
  • Contact Finish - Post:Tin
  • Contact Material:Copper Alloy
  • Insulation Material:Polycyclohexylenedimethylene Terephthalate (PCT)
  • Features:-
  • Operating Temperature:-40°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):2.5A
  • Voltage Rating:-

Related Products


9-146282-0-37

CONN HEADER VERT 37POS 2.54MM

9-146282-0-37 Datasheet
  • 1: $3.25000
  • 10: $3.12433
  • 25: $2.86390

9-146274-0-34

CONN HEADER VERT 34POS 2.54MM

9-146274-0-34 Datasheet
  • 1: $3.25000
  • 10: $3.12108
  • 25: $2.86130

9-103324-0-20

CONN HEADER R/A 40POS 2.54MM

9-103324-0-20 Datasheet
  • 1: $3.25000
  • 10: $3.11611
  • 25: $2.85654

929710-01-15-RK

CONN HEADER VERT 30POS 2.54MM

929710-01-15-RK Datasheet
  • 1: $3.25000
  • 10: $3.12000
  • 25: $2.86000

929710-06-15-RK

CONN HEADER VERT 30POS 2.54MM

929710-06-15-RK Datasheet
  • 1: $3.25000
  • 10: $3.12000
  • 25: $2.86000

929710-11-15-RK

CONN HEADER VERT 30POS 2.54MM

929710-11-15-RK Datasheet
  • 1: $3.25000
  • 10: $3.12000
  • 25: $2.86000

852-80-040-10-002101

CONN HEADER VERT 40POS 1.27MM

852-80-040-10-002101 Datasheet
  • 1: $3.25024
  • 144: $3.25024

4-2842276-6

46P,2MM,SHRD HDR,DRVT,SMD,0.76AU

  • 1: $3.25081

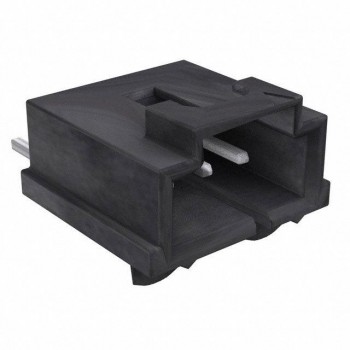

0015916039
