SMH150-LPSE-D14-ST-BK

Sullins Connector Solutions
In Stock: 133

Can ship immediately

Pricing:
  • 1$3.25467
  • 1,000$3.25467

Quote It

Technical Details

  • Series:SMH
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.039" (1.00mm)
  • Number of Positions:28
  • Number of Rows:2
  • Row Spacing - Mating:0.039" (1.00mm)
  • Number of Positions Loaded:All
  • Style:Board to Board
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.071" (1.80mm)



  • Contact Length - Post:0.098" (2.50mm)
  • Overall Contact Length:0.228" (5.80mm)
  • Insulation Height:0.059" (1.50mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:10.0µin (0.25µm)
  • Contact Finish - Post:Gold
  • Contact Material:Phosphor Bronze
  • Insulation Material:Liquid Crystal Polymer (LCP)
  • Features:-
  • Operating Temperature:-40°C ~ 125°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):1A
  • Voltage Rating:-

Related Products


802-V3-020-12-002101

CONN HEADER VERT 20POS 2.54MM

  • 1: $3.25478
  • 180: $2.84294

6-146305-4

CONN HEADER R/A 14POS 2.54MM

6-146305-4 Datasheet
  • 1: $3.25483
  • 750: $3.00956

0741621420

CONN HEADER R/A 20POS 2.54MM

0741621420 Datasheet
  • 1: $3.25496
  • 1296: $3.25496

09185407323800

CONN HEADER R/A 40POS 2.54MM

09185407323800 Datasheet
  • 1: $3.25500
  • 50: $3.25500

102160-5

CONN HEADER R/A 24POS 2.54MM

102160-5 Datasheet
  • 1: $3.25510
  • 480: $3.19638

5-826648-0

CONN HEADER VERT 50POS 2.54MM

5-826648-0 Datasheet
  • 1: $3.25527
  • 3600: $3.01857

SBH51-LPPE-D22-SM-BK

CONN HEADER SMD 44POS 1MM

SBH51-LPPE-D22-SM-BK Datasheet
  • 1: $3.25600
  • 25: $3.25600

SBH51-LPPE-D22-SP-BK

CONN HEADER SMD 44POS 1MM

SBH51-LPPE-D22-SP-BK Datasheet
  • 1: $3.25600
  • 25: $3.25600

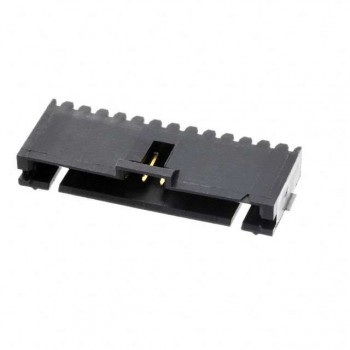

1-147278-1
