In Stock: 196

Can ship immediately

Pricing:
  • 1$3.26988
  • 420$3.08219

Quote It

Technical Details

  • Series:AMPMODU MTE
  • Package:Tube
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:13
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Board or Cable
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Through Hole
  • Termination:Press-Fit, Solder
  • Fastening Type:Latch Holder
  • Contact Length - Mating:0.230" (5.84mm)



  • Contact Length - Post:0.130" (3.30mm)
  • Overall Contact Length:0.545" (13.84mm)
  • Insulation Height:0.535" (13.60mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:15.0µin (0.38µm)
  • Contact Finish - Post:Tin-Lead
  • Contact Material:Brass
  • Insulation Material:Thermoplastic
  • Features:Keying Slot
  • Operating Temperature:-65°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):3A
  • Voltage Rating:-

Related Products


PEC35SAEN

CONN HEADER VERT 35POS 2.54MM

PEC35SAEN Datasheet
  • 1: $3.27000
  • 10: $3.13600
  • 25: $2.87480

PEC26SAHN

CONN HEADER VERT 26POS 2.54MM

PEC26SAHN Datasheet
  • 1: $3.27000
  • 10: $3.14100
  • 25: $2.87920

PEC12DBEN

CONN HEADER R/A 24POS 2.54MM

PEC12DBEN Datasheet
  • 1: $3.27000
  • 10: $3.13900
  • 25: $2.87760

PBC13DGAN

CONN HEADER R/A 26POS 2.54MM

PBC13DGAN Datasheet
  • 1: $3.27000
  • 10: $3.14100
  • 25: $2.87920

9-102975-0-16

CONN HEADER R/A 32POS 2.54MM

  • 1: $3.27000
  • 10: $3.13876
  • 25: $2.87671

929745-01-10-EU

CONN HEADER R/A 20POS 2.54MM

929745-01-10-EU Datasheet
  • 1: $3.27000
  • 10: $3.13600
  • 25: $2.87480

350-10-125-01-666101

CONN HEADER VERT 25POS 2.54MM

350-10-125-01-666101 Datasheet
  • 1: $3.27000
  • 180: $2.85628

0741621220

CONN HEADER R/A 20POS 2.54MM

0741621220 Datasheet
  • 1: $3.27004
  • 1296: $3.27004

4-146413-0

CONN HEADER VERT 80POS 2.54MM

4-146413-0 Datasheet
  • 1: $3.27024
  • 1000: $3.02380

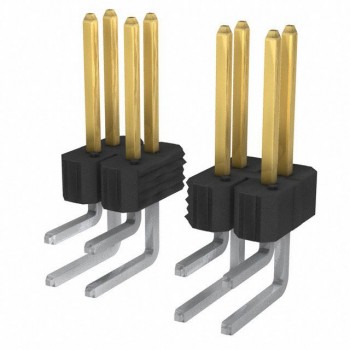

68022-272
