CWN-321-10-0000

CW Industries
In Stock: 174

Can ship immediately

Pricing:
  • 1$3.28
  • 100$3.04

Quote It

Technical Details

  • Series:CWN
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:10
  • Number of Rows:2
  • Row Spacing - Mating:0.100" (2.54mm)
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Through Hole, Right Angle
  • Termination:Wire Wrap
  • Fastening Type:Latch Lock/Eject Hooks, Short
  • Contact Length - Mating:0.240" (6.10mm)



  • Contact Length - Post:0.610" (15.49mm)
  • Overall Contact Length:-
  • Insulation Height:0.291" (7.40mm)
  • Contact Shape:Circular
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:10.0µin (0.25µm)
  • Contact Finish - Post:Nickel
  • Contact Material:Phosphor Bronze
  • Insulation Material:Thermoplastic
  • Features:Keying Slot
  • Operating Temperature:-55°C ~ 125°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Blue
  • Current Rating (Amps):1A
  • Voltage Rating:-

Related Products


66429-079LF

CONN HEADER R/A 34POS 2.54MM

66429-079LF Datasheet
  • 1: $3.28058
  • 800: $3.28058

892-80-076-20-001101

CONN HEADER R/A 76POS 2.54MM

892-80-076-20-001101 Datasheet
  • 1: $3.28059
  • 170: $3.02129

0015911522

CONN HEADER SMD 52POS 2.54MM

0015911522 Datasheet
  • 1: $3.28062
  • 1728: $3.28062

0022122106

CONN HEADER R/A 10POS 2.54MM

0022122106 Datasheet
  • 1: $3.28073
  • 400: $3.28073

0901301350

CONN HEADER VERT 50POS 2.54MM

0901301350 Datasheet
  • 1: $3.28172

894-70-051-10-004101

CONN HEADER VERT 51POS 2.54MM

  • 1: $3.28200
  • 170: $2.97524

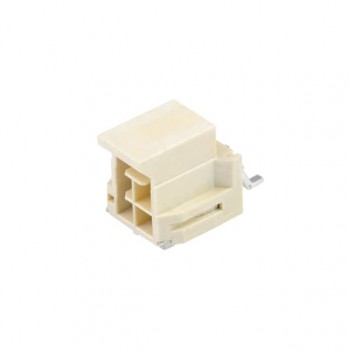

1054052304
