0713492016

Woodhead - Molex
In Stock: 199

Can ship immediately

Pricing:
  • 1$3.28294
  • 1,080$3.28294

Quote It

Technical Details

  • Series:C-Grid 71349
  • Package:Tube
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:36
  • Number of Rows:2
  • Row Spacing - Mating:0.100" (2.54mm)
  • Number of Positions Loaded:All
  • Style:Board to Board or Cable
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Surface Mount
  • Termination:Solder
  • Fastening Type:Latch Holder
  • Contact Length - Mating:0.315" (8.00mm)



  • Contact Length - Post:-
  • Overall Contact Length:-
  • Insulation Height:0.525" (13.34mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:150.0µin (3.81µm)
  • Contact Finish - Post:Tin
  • Contact Material:Copper Alloy
  • Insulation Material:Liquid Crystal Polymer (LCP)
  • Features:Board Guide
  • Operating Temperature:-
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):-
  • Voltage Rating:-

Related Products


850-10-013-30-135101

CONN HEADER SMD 13POS 1.27MM

850-10-013-30-135101 Datasheet
  • 1: $3.28439
  • 180: $2.86861

450-80-244-00-001101

CONN HEADER VERT 44POS 2.54MM

450-80-244-00-001101 Datasheet
  • 1: $3.28440
  • 200: $3.02475

350-80-144-00-001101

CONN HEADER VERT 44POS 2.54MM

350-80-144-00-001101 Datasheet
  • 1: $3.28441
  • 170: $3.02476

350-80-144-00-018101

CONN HEADER VERT 44POS 2.54MM

350-80-144-00-018101 Datasheet
  • 1: $3.28441
  • 170: $3.02476

450-80-244-00-018101

CONN HEADER VERT 44POS 2.54MM

450-80-244-00-018101 Datasheet
  • 1: $3.28441
  • 170: $3.02476

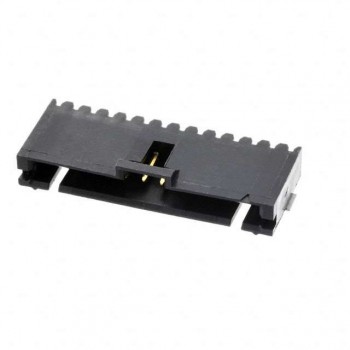

6-147278-1
