1054312308

Woodhead - Molex
In Stock: 115

Can ship immediately

Pricing:
  • 1$3.30768

Quote It

Technical Details

  • Series:Nano-Fit 105431
  • Package:Tape & Reel (TR)
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.098" (2.50mm)
  • Number of Positions:8
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Surface Mount
  • Termination:Solder
  • Fastening Type:Latch Holder
  • Contact Length - Mating:-



  • Contact Length - Post:-
  • Overall Contact Length:-
  • Insulation Height:0.382" (9.70mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:30.0µin (0.76µm)
  • Contact Finish - Post:Tin
  • Contact Material:Brass
  • Insulation Material:Liquid Crystal Polymer (LCP)
  • Features:Pick and Place, Solder Retention
  • Operating Temperature:-40°C ~ 115°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Natural
  • Current Rating (Amps):4A
  • Voltage Rating:250VAC

Related Products


350-80-139-01-666101

CONN HEADER VERT 39POS 2.54MM

350-80-139-01-666101 Datasheet
  • 1: $3.30800
  • 170: $3.04659

0015913400

CONN HEADER SMD 40POS 2.54MM

0015913400 Datasheet
  • 1: $3.30806
  • 2160: $3.30806

852-80-026-30-001191

CONN HEADER SMD 26POS 1.27MM

  • 1: $3.30816
  • 750: $3.04647

852-80-026-30-002191

CONN HEADER SMD 26POS 1.27MM

  • 1: $3.30816
  • 800: $3.04646

850-10-024-10-001101

CONN HEADER VERT 24POS 1.27MM

850-10-024-10-001101 Datasheet
  • 1: $3.30900
  • 180: $2.89022

103311-7

CONN HEADER R/A 34POS 2.54MM

103311-7 Datasheet
  • 1: $3.30914
  • 350: $3.19646

800-80-025-66-001101

CONN HEADER VERT 25POS 2.54MM

800-80-025-66-001101 Datasheet
  • 1: $3.30940
  • 200: $3.04760

800-80-055-20-101101

CONN HEADER R/A 28POS 5.08MM

800-80-055-20-101101 Datasheet
  • 1: $3.30982
  • 170: $3.04800

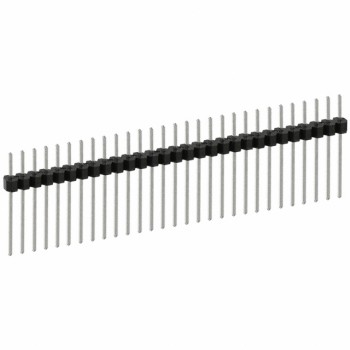

PEC29SAFN
