In Stock: 200

Can ship immediately

Pricing:
  • 1$3.3354
  • 420$2.97548

Quote It

Technical Details

  • Series:AMP-Latch
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:26
  • Number of Rows:2
  • Row Spacing - Mating:0.100" (2.54mm)
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Through Hole, Right Angle
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.240" (6.10mm)



  • Contact Length - Post:0.135" (3.43mm)
  • Overall Contact Length:-
  • Insulation Height:0.360" (9.14mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold or Gold-Palladium
  • Contact Finish Thickness - Mating:30.0µin (0.76µm)
  • Contact Finish - Post:Tin-Lead
  • Contact Material:Brass
  • Insulation Material:-
  • Features:Keying Slot
  • Operating Temperature:-65°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):1A per Contact
  • Voltage Rating:-

Related Products


103167-2

CONN HEADER R/A 10POS 2.54MM

103167-2 Datasheet
  • 1: $3.33540
  • 1680: $3.03848

890-18-039-10-002101

CONN HEADER VERT 39POS 2.54MM

890-18-039-10-002101 Datasheet
  • 1: $3.33541
  • 170: $2.99241

0026192181

CONN HEADER VERT 18POS 3.96MM

0026192181 Datasheet
  • 1: $3.33550
  • 800: $2.95430

68695-172

CONN HEADER R/A 72POS 2.54MM

68695-172 Datasheet
  • 1: $3.33567
  • 300: $3.08420

10076801-105-40LF

CONN HEADER VERT 40POS 2.54MM

10076801-105-40LF Datasheet
  • 1: $3.33567
  • 300: $3.08420

800-10-025-20-004101

CONN HEADER R/A 25POS 2.54MM

800-10-025-20-004101 Datasheet
  • 1: $3.33578
  • 180: $2.91367

GT25H-32DP-2.2V

CONN PIN HEADER PCB SMD STR

  • 1: $3.33600

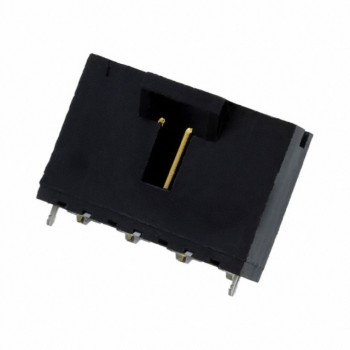

1375583-6
