957244-2000-AR-TP
3M
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HEADER SMD 44POS 2MM
- CategoryRectangular Connectors - Headers, Male Pins
- Datasheet 957244-2000-AR-TP Datasheet
-
ECAD Model
- Share
In Stock: 134
Can ship immediately
Pricing:
- 1$3.4608
- 1,700$3.4608
Quote It
Technical Details
- Series:957
- Package:Tube
- Part Status:Active
- Connector Type:Header
- Contact Type:Male Pin
- Pitch - Mating:0.079" (2.00mm)
- Number of Positions:44
- Number of Rows:2
- Row Spacing - Mating:0.079" (2.00mm)
- Number of Positions Loaded:All
- Style:Board to Board
- Shrouding:Shrouded - 4 Wall
- Mounting Type:Surface Mount
- Termination:Solder
- Fastening Type:Push-Pull
- Contact Length - Mating:-
- Contact Length - Post:-
- Overall Contact Length:-
- Insulation Height:0.220" (5.60mm)
- Contact Shape:Square
- Contact Finish - Mating:Gold
- Contact Finish Thickness - Mating:Flash
- Contact Finish - Post:Tin
- Contact Material:Copper Alloy
- Insulation Material:Thermoplastic
- Features:Keying Slot
- Operating Temperature:-40°C ~ 105°C
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:Black
- Current Rating (Amps):1A
- Voltage Rating:-
Related Products

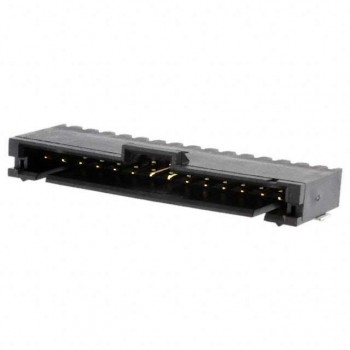

CONN HEADER VERT
