FI-WE31P-HFE-E1500
JAE Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HEADER SMD R/A 31POS 1.25MM
- CategoryRectangular Connectors - Headers, Male Pins
- Datasheet FI-WE31P-HFE-E1500 Datasheet
-
ECAD Model
- Share
In Stock: 169
Can ship immediately
Pricing:
- 1$3.90516
- 1,500$3.90516
Quote It
Technical Details
- Series:FI
- Package:Tape & Reel (TR)
- Part Status:Active
- Connector Type:Receptacle
- Contact Type:Male Pin
- Pitch - Mating:0.049" (1.25mm)
- Number of Positions:31
- Number of Rows:2
- Row Spacing - Mating:0.055" (1.40mm)
- Number of Positions Loaded:All
- Style:Board to Cable/Wire
- Shrouding:Shrouded - 4 Wall
- Mounting Type:Surface Mount, Right Angle
- Termination:Solder
- Fastening Type:Friction Lock
- Contact Length - Mating:0.094" (2.40mm)
- Contact Length - Post:-
- Overall Contact Length:-
- Insulation Height:0.146" (3.70mm)
- Contact Shape:Square
- Contact Finish - Mating:Gold
- Contact Finish Thickness - Mating:-
- Contact Finish - Post:Tin or Tin-Alloy
- Contact Material:Copper Alloy
- Insulation Material:Polyphenylene Sulfide (PPS), Glass Filled
- Features:Shielded, Solder Retention
- Operating Temperature:-40°C ~ 80°C
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:Black
- Current Rating (Amps):1A per Contact
- Voltage Rating:200V
Related Products

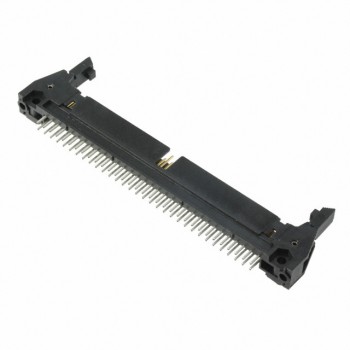

CONN HEADER VERT 87POS 2.54MM
