PBC17DBEN
Sullins Connector Solutions
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HEADER R/A 34POS 2.54MM
- CategoryRectangular Connectors - Headers, Male Pins
- Datasheet PBC17DBEN Datasheet
-
ECAD Model
- Share
In Stock: 137
Can ship immediately
Pricing:
- 1$4.1
- 10$3.672
- 100$3.0242
- 500$2.39056
- 1,000$2.05214
- 5,000$1.87213
- 10,000$1.80013
Quote It
Technical Details
- Series:-
- Package:Bulk
- Part Status:Discontinued at Digi-Key
- Connector Type:Header, Breakaway
- Contact Type:Male Pin
- Pitch - Mating:0.100" (2.54mm)
- Number of Positions:34
- Number of Rows:2
- Row Spacing - Mating:0.100" (2.54mm)
- Number of Positions Loaded:All
- Style:Board to Board or Cable
- Shrouding:Unshrouded
- Mounting Type:Through Hole, Right Angle
- Termination:Solder
- Fastening Type:Push-Pull
- Contact Length - Mating:0.230" (5.84mm)
- Contact Length - Post:0.500" (12.70mm)
- Overall Contact Length:-
- Insulation Height:0.240" (6.10mm)
- Contact Shape:Square
- Contact Finish - Mating:Gold
- Contact Finish Thickness - Mating:10.0µin (0.25µm)
- Contact Finish - Post:Tin
- Contact Material:Phosphor Bronze
- Insulation Material:Polybutylene Terephthalate (PBT)
- Features:-
- Operating Temperature:-65°C ~ 125°C
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:Black
- Current Rating (Amps):3A
- Voltage Rating:-
Related Products
CONN HEADER VERT 26POS 2.54MM
HIF3BA-26PA-2.54DSA(71) Datasheet- 1: $4.10000
- 10: $3.93600
- 100: $3.28000

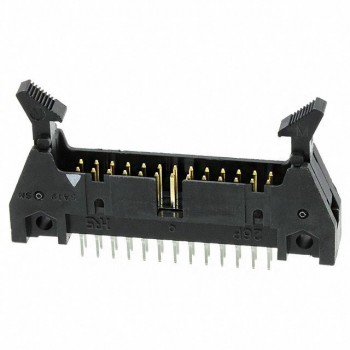

CONN HEADER VERT 26POS 2.54MM
