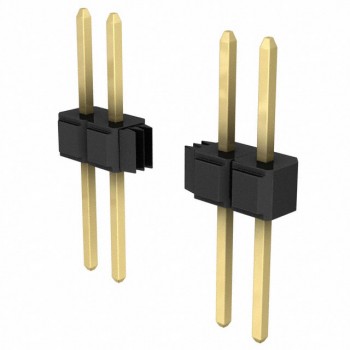

800-10-020-62-001000
Mill-Max
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HEADER VERT 20POS 2.54MM
- CategoryRectangular Connectors - Headers, Male Pins
- Datasheet 800-10-020-62-001000 Datasheet
-
ECAD Model
- Share
In Stock: 110
Can ship immediately
Pricing:
- 1$4.27
- 10$4.101
- 25$3.7596
- 50$3.5886
- 100$3.4178
- 250$2.99056
- 500$2.9051
Quote It
Technical Details
- Series:800
- Package:Tube
- Part Status:Active
- Connector Type:Header
- Contact Type:Male Pin
- Pitch - Mating:0.100" (2.54mm)
- Number of Positions:20
- Number of Rows:1
- Row Spacing - Mating:-
- Number of Positions Loaded:All
- Style:Board to Board
- Shrouding:Unshrouded
- Mounting Type:Through Hole
- Termination:Press-Fit, Solder
- Fastening Type:Push-Pull
- Contact Length - Mating:0.191" (4.85mm)
- Contact Length - Post:0.143" (3.63mm)
- Overall Contact Length:0.444" (11.28mm)
- Insulation Height:0.110" (2.79mm)
- Contact Shape:Circular
- Contact Finish - Mating:Gold
- Contact Finish Thickness - Mating:10.0µin (0.25µm)
- Contact Finish - Post:Gold
- Contact Material:Brass Alloy
- Insulation Material:Polycyclohexylenedimethylene Terephthalate (PCT)
- Features:-
- Operating Temperature:-
- Ingress Protection:-
- Material Flammability Rating:-
- Insulation Color:Black
- Current Rating (Amps):-
- Voltage Rating:-
