98423-F61-24ULF
Storage & Server IO (Amphenol ICC)
- Lifecycle status Active
- RoHS RoHS Compliant

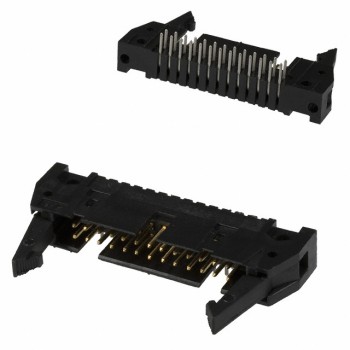

- DescriptionCONN HEADER R/A 48POS 2MM
- CategoryRectangular Connectors - Headers, Male Pins
- Datasheet 98423-F61-24ULF Datasheet
-
ECAD Model
- Share
In Stock: 192
Can ship immediately
Pricing:
- 1$4.30738
- 168$3.98298
Quote It
Technical Details
- Series:Minitek® 2.00mm
- Package:Tube
- Part Status:Active
- Connector Type:Header
- Contact Type:Male Pin
- Pitch - Mating:0.079" (2.00mm)
- Number of Positions:48
- Number of Rows:2
- Row Spacing - Mating:0.079" (2.00mm)
- Number of Positions Loaded:All
- Style:Board to Board
- Shrouding:Unshrouded
- Mounting Type:Through Hole, Right Angle
- Termination:Solder
- Fastening Type:Push-Pull
- Contact Length - Mating:0.157" (4.00mm)
- Contact Length - Post:0.098" (2.50mm)
- Overall Contact Length:-
- Insulation Height:0.157" (4.00mm)
- Contact Shape:Square
- Contact Finish - Mating:Gold
- Contact Finish Thickness - Mating:Flash
- Contact Finish - Post:Tin
- Contact Material:Copper Alloy
- Insulation Material:Thermoplastic
- Features:-
- Operating Temperature:-
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:Black
- Current Rating (Amps):2A (AC/DC)
- Voltage Rating:200V (AC/DC)
