0705430118

Woodhead - Molex
In Stock: 181

Can ship immediately

Pricing:
  • 1$4.32092

Quote It

Technical Details

  • Series:SL 70543
  • Package:Tube
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:14
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Latch Holder
  • Contact Length - Mating:0.240" (6.10mm)



  • Contact Length - Post:0.130" (3.30mm)
  • Overall Contact Length:0.470" (11.94mm)
  • Insulation Height:0.465" (11.80mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:30.0µin (0.76µm)
  • Contact Finish - Post:Tin
  • Contact Material:Phosphor Bronze
  • Insulation Material:Polyester, Glass Filled
  • Features:-
  • Operating Temperature:-40°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):-
  • Voltage Rating:250V

Related Products


1719710214

SL LCP VERT HDR ASSY TH 30AU 14

  • 1: $4.32092

0430451822

CONN HEADER R/A 18POS 3MM

0430451822 Datasheet
  • 1: $4.32258
  • 720: $4.06832

499-80-244-10-009101

CONN HEADER R/A 44POS 2.54MM

499-80-244-10-009101 Datasheet
  • 1: $4.32319
  • 160: $3.98144

1054052112

CONN HEADER SMD R/A 12POS 2.5MM

1054052112 Datasheet
  • 1: $4.32379
  • 750: $4.32379

350-80-136-00-012101

CONN HEADER VERT 36POS 1.78MM

350-80-136-00-012101 Datasheet
  • 1: $4.32423
  • 130: $3.98246

N3432-5203RB

CONN HEADER R/A 40POS 2.54MM

N3432-5203RB Datasheet
  • 1: $4.32480
  • 200: $4.08000

N3432-5303RB

CONN HEADER R/A 40POS 2.54MM

N3432-5303RB Datasheet
  • 1: $4.32480
  • 200: $4.08000

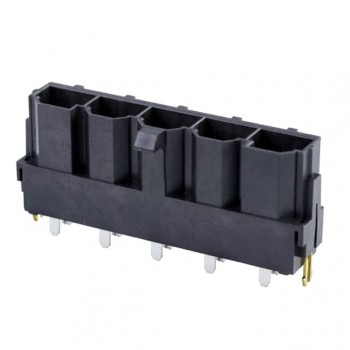

0428195214
