35610-6224-A00PE
3M
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HEADER VERT 10POS 3MM
- CategoryRectangular Connectors - Headers, Male Pins
- Datasheet 35610-6224-A00PE Datasheet
-
ECAD Model
- Share
In Stock: 144
Can ship immediately
Pricing:
- 1$4.736
- 10$4.5464
- 100$3.7888
- 500$3.22048
- 1,000$2.74688
Quote It
Technical Details
- Series:Power Clamp, 356
- Package:Bulk
- Part Status:Active
- Connector Type:Header
- Contact Type:Male Blade
- Pitch - Mating:0.118" (3.00mm)
- Number of Positions:10
- Number of Rows:2
- Row Spacing - Mating:-
- Number of Positions Loaded:All
- Style:Board to Cable/Wire
- Shrouding:Shrouded - 4 Wall
- Mounting Type:Through Hole
- Termination:Solder
- Fastening Type:Latch Holder
- Contact Length - Mating:-
- Contact Length - Post:0.110" (2.79mm)
- Overall Contact Length:-
- Insulation Height:0.650" (16.50mm)
- Contact Shape:Rectangular
- Contact Finish - Mating:Gold
- Contact Finish Thickness - Mating:20.0µin (0.51µm)
- Contact Finish - Post:Gold
- Contact Material:Copper Alloy
- Insulation Material:Polyamide (PA), Nylon
- Features:Board Guide, Board Lock
- Operating Temperature:-20°C ~ 75°C
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:Black
- Current Rating (Amps):-
- Voltage Rating:250V
Related Products

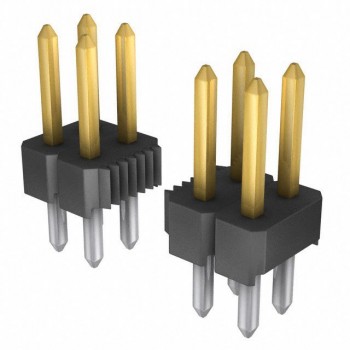

CONN HEADER VERT 24POS 2.54MM
