M80-7713422

Harwin
In Stock: 179

Can ship immediately

Pricing:
  • 1$4.80459
  • 1,002$4.5332

Quote It

Technical Details

  • Series:Datamate L-Tek
  • Package:Tube
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.079" (2.00mm)
  • Number of Positions:34
  • Number of Rows:2
  • Row Spacing - Mating:0.079" (2.00mm)
  • Number of Positions Loaded:All
  • Style:Board to Board or Cable
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Through Hole, Right Angle
  • Termination:Solder
  • Fastening Type:Latch Lock
  • Contact Length - Mating:-



  • Contact Length - Post:0.177" (4.50mm)
  • Overall Contact Length:-
  • Insulation Height:0.235" (5.97mm)
  • Contact Shape:Circular
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:29.5µin (0.75µm)
  • Contact Finish - Post:Tin-Lead
  • Contact Material:Phosphor Bronze
  • Insulation Material:Polyphenylene Sulfide (PPS), Glass Filled
  • Features:Strain Relief Clips
  • Operating Temperature:-55°C ~ 125°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):2.2A per Contact
  • Voltage Rating:120V

Related Products


45220-620200

CONN HEADER VERT 20POS 1.27MM

45220-620200 Datasheet
  • 1: $4.80477
  • 500: $3.88960

800-V3-042-20-001101

CONN HEADER R/A 42POS 2.54MM

800-V3-042-20-001101 Datasheet
  • 1: $4.80541
  • 90: $4.80541

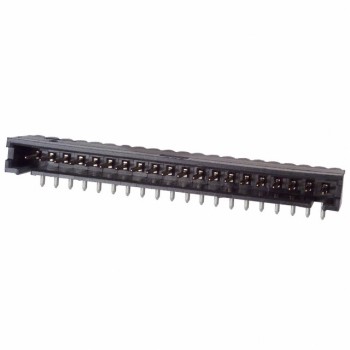

6-102203-7

CONN HEADER R/A 20POS 2.54MM

6-102203-7 Datasheet
  • 1: $4.80562
  • 648: $4.37781

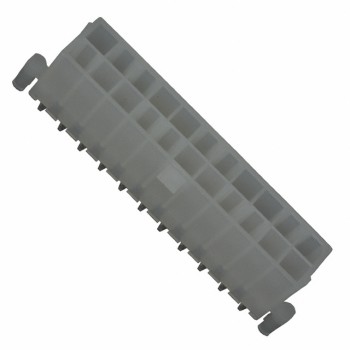

0039299224
