351-80-144-00-004101

Preci-Dip
In Stock: 167

Can ship immediately

Pricing:
  • 1$4.82442
  • 120$4.443

Quote It

Technical Details

  • Series:351
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:44
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Board
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.118" (3.00mm)



  • Contact Length - Post:0.126" (3.20mm)
  • Overall Contact Length:0.575" (14.60mm)
  • Insulation Height:0.116" (2.95mm)
  • Contact Shape:Circular
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:-
  • Contact Finish - Post:Tin
  • Contact Material:Brass
  • Insulation Material:Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
  • Features:-
  • Operating Temperature:-55°C ~ 125°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):3A
  • Voltage Rating:150VDC

Related Products


451-80-244-00-004101

CONN HEADER VERT 44POS 2.54MM

451-80-244-00-004101 Datasheet
  • 1: $4.82442
  • 120: $4.44300

800-10-042-40-001101

CONN HEADER SMD R/A 42POS 2.54MM

800-10-042-40-001101 Datasheet
  • 1: $4.82467
  • 150: $4.43593

350-10-140-00-001101

CONN HEADER VERT 40POS 2.54MM

350-10-140-00-001101 Datasheet
  • 1: $4.82479
  • 120: $4.21433

350-10-140-00-018101

CONN HEADER VERT 40POS 2.54MM

350-10-140-00-018101 Datasheet
  • 1: $4.82483
  • 120: $4.21433

450-10-240-00-018101

CONN HEADER VERT 40POS 2.54MM

450-10-240-00-018101 Datasheet
  • 1: $4.82483
  • 120: $4.21433

351-80-137-00-005101

CONN HEADER VERT 37POS 2.54MM

351-80-137-00-005101 Datasheet
  • 1: $4.82517
  • 120: $4.44342

850-10-035-10-001101

CONN HEADER VERT 35POS 1.27MM

850-10-035-10-001101 Datasheet
  • 1: $4.82542
  • 120: $4.21492

894-80-099-10-003101

CONN HEADER VERT 99POS 2.54MM

  • 1: $4.82542
  • 120: $4.44358

892-18-048-10-004101

CONN HEADER VERT 48POS 2.54MM

892-18-048-10-004101 Datasheet
  • 1: $4.82558
  • 120: $4.55708

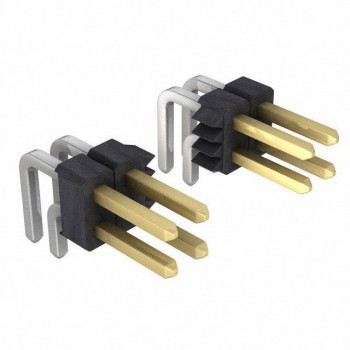

892-18-048-20-001101
