CWN-562-26-0021
CW Industries
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HEADER VERT 26POS 2.54MM
- CategoryRectangular Connectors - Headers, Male Pins
- Datasheet CWN-562-26-0021 Datasheet
-
ECAD Model
- Share
In Stock: 154
Can ship immediately
Pricing:
- 1$4.864
- 100$3.62
Quote It
Technical Details
- Series:CWN
- Package:Bulk
- Part Status:Active
- Connector Type:Header
- Contact Type:Male Pin
- Pitch - Mating:0.100" (2.54mm)
- Number of Positions:26
- Number of Rows:2
- Row Spacing - Mating:0.100" (2.54mm)
- Number of Positions Loaded:All
- Style:Board to Cable/Wire
- Shrouding:Shrouded - 4 Wall
- Mounting Type:Through Hole
- Termination:Solder
- Fastening Type:Latch Lock/Eject Hooks, Long
- Contact Length - Mating:0.240" (6.10mm)
- Contact Length - Post:0.155" (3.94mm)
- Overall Contact Length:-
- Insulation Height:0.681" (17.30mm)
- Contact Shape:Circular
- Contact Finish - Mating:Gold
- Contact Finish Thickness - Mating:30.0µin (0.76µm)
- Contact Finish - Post:Nickel
- Contact Material:Phosphor Bronze
- Insulation Material:Thermoplastic
- Features:Keying Slot
- Operating Temperature:-55°C ~ 125°C
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:Blue
- Current Rating (Amps):1A
- Voltage Rating:-
Related Products

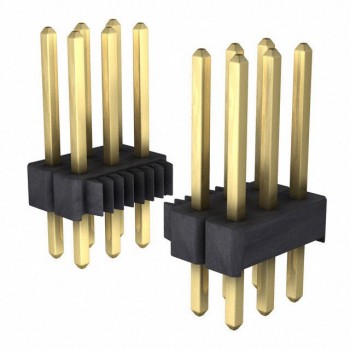

CONN HEADER VERT 96POS 2.54MM
- 1: $4.86417
- 120: $4.40967

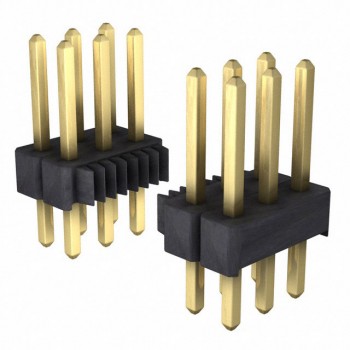

CONN HEADER VERT 114POS 2.54MM
