SBH51-LPSE-D19-ST-BK
Sullins Connector Solutions- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HEADER VERT 38POS 1MM
- CategoryRectangular Connectors - Headers, Male Pins
- Datasheet SBH51-LPSE-D19-ST-BK Datasheet
-
ECAD Model
- Share
In Stock: 176
Can ship immediately
Pricing:
- 1$4.95552
- 29$4.95552
Quote It
Technical Details
- Series:SBH51
- Package:Tube
- Part Status:Active
- Connector Type:Header
- Contact Type:Male Pin
- Pitch - Mating:0.039" (1.00mm)
- Number of Positions:38
- Number of Rows:2
- Row Spacing - Mating:0.039" (1.00mm)
- Number of Positions Loaded:All
- Style:Board to Board
- Shrouding:Shrouded - 4 Wall
- Mounting Type:Through Hole
- Termination:Solder
- Fastening Type:Push-Pull
- Contact Length - Mating:-
- Contact Length - Post:0.098" (2.50mm)
- Overall Contact Length:-
- Insulation Height:0.134" (3.40mm)
- Contact Shape:Square
- Contact Finish - Mating:Gold
- Contact Finish Thickness - Mating:10.0µin (0.25µm)
- Contact Finish - Post:Gold
- Contact Material:Phosphor Bronze
- Insulation Material:Liquid Crystal Polymer (LCP)
- Features:-
- Operating Temperature:-40°C ~ 125°C
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:Black
- Current Rating (Amps):1A per Contact
- Voltage Rating:-
Related Products

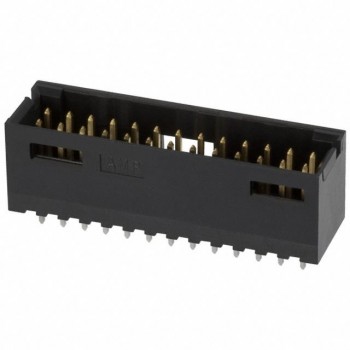

SEK/IDC THR/SMC STRAIGHT MALE, 2
