351-80-161-00-003101
Preci-Dip
- Lifecycle status Active
- RoHS RoHS Compliant

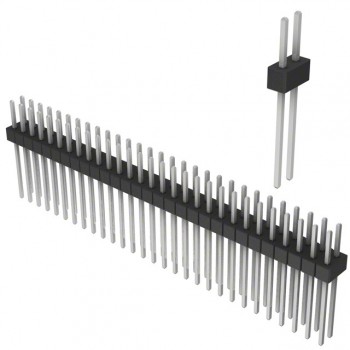

- DescriptionCONN HEADER VERT 61POS 2.54MM
- CategoryRectangular Connectors - Headers, Male Pins
- Datasheet 351-80-161-00-003101 Datasheet
-
ECAD Model
- Share
In Stock: 200
Can ship immediately
Pricing:
- 1$5.3871
- 100$4.9612
Quote It
Technical Details
- Series:351
- Package:Bulk
- Part Status:Active
- Connector Type:Header
- Contact Type:Male Pin
- Pitch - Mating:0.100" (2.54mm)
- Number of Positions:61
- Number of Rows:1
- Row Spacing - Mating:-
- Number of Positions Loaded:All
- Style:Board to Board
- Shrouding:Unshrouded
- Mounting Type:Through Hole
- Termination:Solder
- Fastening Type:Push-Pull
- Contact Length - Mating:0.118" (3.00mm)
- Contact Length - Post:0.126" (3.20mm)
- Overall Contact Length:0.488" (12.40mm)
- Insulation Height:0.116" (2.95mm)
- Contact Shape:Circular
- Contact Finish - Mating:Tin
- Contact Finish Thickness - Mating:-
- Contact Finish - Post:Tin
- Contact Material:Brass
- Insulation Material:Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
- Features:-
- Operating Temperature:-55°C ~ 125°C
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:Black
- Current Rating (Amps):3A
- Voltage Rating:150VDC
