5111374-8
TE Connectivity AMP Connectors
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HEADER VERT 34POS 2.54MM
- CategoryRectangular Connectors - Headers, Male Pins
- Datasheet 5111374-8 Datasheet
-
ECAD Model
- Share
In Stock: 192
Can ship immediately
Pricing:
- 1$5.39801
- 690$5.21422
Quote It
Technical Details
- Series:AMP-Latch
- Package:Tray
- Part Status:Active
- Connector Type:Header
- Contact Type:Male Pin
- Pitch - Mating:0.100" (2.54mm)
- Number of Positions:34
- Number of Rows:2
- Row Spacing - Mating:0.100" (2.54mm)
- Number of Positions Loaded:All
- Style:Board to Cable/Wire
- Shrouding:Shrouded - 4 Wall
- Mounting Type:Through Hole
- Termination:Solder
- Fastening Type:Latch Lock/Eject Hooks
- Contact Length - Mating:0.240" (6.10mm)
- Contact Length - Post:0.110" (2.79mm)
- Overall Contact Length:0.639" (16.23mm)
- Insulation Height:0.549" (13.94mm)
- Contact Shape:Square
- Contact Finish - Mating:Gold or Gold-Palladium
- Contact Finish Thickness - Mating:Flash
- Contact Finish - Post:Tin
- Contact Material:-
- Insulation Material:Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled
- Features:Keying Slot, Mounting Flange
- Operating Temperature:-65°C ~ 105°C
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:Red
- Current Rating (Amps):1A per Contact
- Voltage Rating:250VAC
Related Products

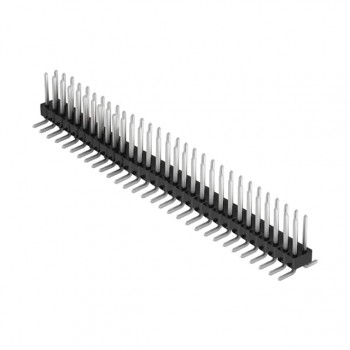

CONN HEADER R/A 45POS 2.54MM
