830-10-044-40-001101
Preci-Dip
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HEADER SMD R/A 44POS 2MM
- CategoryRectangular Connectors - Headers, Male Pins
- Datasheet 830-10-044-40-001101 Datasheet
-
ECAD Model
- Share
In Stock: 160
Can ship immediately
Pricing:
- 1$5.8028
- 100$5.0685
Quote It
Technical Details
- Series:830
- Package:Bulk
- Part Status:Active
- Connector Type:Header
- Contact Type:Male Pin
- Pitch - Mating:0.079" (2.00mm)
- Number of Positions:44
- Number of Rows:1
- Row Spacing - Mating:-
- Number of Positions Loaded:All
- Style:Board to Board
- Shrouding:Unshrouded
- Mounting Type:Surface Mount, Right Angle
- Termination:Solder
- Fastening Type:Push-Pull
- Contact Length - Mating:0.141" (3.60mm)
- Contact Length - Post:-
- Overall Contact Length:-
- Insulation Height:0.087" (2.20mm)
- Contact Shape:Circular
- Contact Finish - Mating:Gold
- Contact Finish Thickness - Mating:10.0µin (0.25µm)
- Contact Finish - Post:Gold
- Contact Material:Brass
- Insulation Material:Liquid Crystal Polymer (LCP), Glass Filled
- Features:-
- Operating Temperature:-55°C ~ 125°C
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:Black
- Current Rating (Amps):3A
- Voltage Rating:150VDC
Related Products

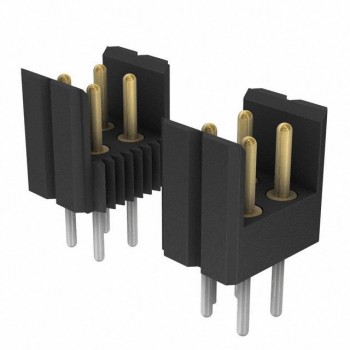

DATAMATE J-TEK DIL MALE VERTICAL
