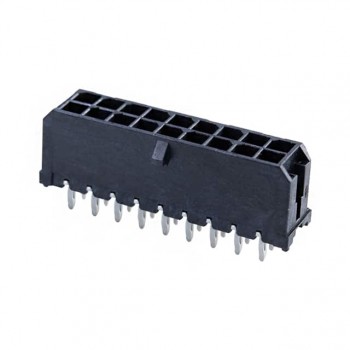

1054059310

Technical Details

• Series:Nano-Fit 105405
• Package:Tape & Reel (TR)
• Part Status:Active
• Connector Type:Header
• Contact Type:Male Pin
• Pitch - Mating:0.098" (2.50mm)
• Number of Positions:10
• Number of Rows:2
• Row Spacing - Mating:0.098" (2.50mm)
• Number of Positions Loaded:All
• Style:Board to Cable/Wire
• Shrouding:Shrouded - 4 Wall
• Mounting Type:Surface Mount, Right Angle
• Termination:Solder
• Fastening Type:Latch Holder
• Contact Length - Mating:-

• Contact Length - Post:-
• Overall Contact Length:-
• Insulation Height:0.247" (6.28mm)
• Contact Shape:Square
• Contact Finish - Mating:Gold
• Contact Finish Thickness - Mating:30.0µin (0.76µm)
• Contact Finish - Post:Tin
• Contact Material:Brass
• Insulation Material:Liquid Crystal Polymer (LCP)
• Features:-
• Operating Temperature:-
• Ingress Protection:-
• Material Flammability Rating:UL94 V-0
• Insulation Color:Black
• Current Rating (Amps):-
• Voltage Rating:-
