9-146296-0
TE Connectivity AMP Connectors- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HEADER VERT 40POS 2.54MM
- CategoryRectangular Connectors - Headers, Male Pins
- Datasheet 9-146296-0 Datasheet
-
ECAD Model
- Share
In Stock: 179
Can ship immediately
Pricing:
- 1$6.85624
- 500$6.4017
Quote It
Technical Details
- Series:AMPMODU Mod II
- Package:Bulk
- Part Status:Active
- Connector Type:Header, Breakaway
- Contact Type:Male Pin
- Pitch - Mating:0.100" (2.54mm)
- Number of Positions:40
- Number of Rows:1
- Row Spacing - Mating:-
- Number of Positions Loaded:All
- Style:Board to Board or Cable
- Shrouding:Unshrouded
- Mounting Type:Through Hole
- Termination:Kinked Pin, Solder
- Fastening Type:Push-Pull
- Contact Length - Mating:0.230" (5.84mm)
- Contact Length - Post:0.090" (2.29mm)
- Overall Contact Length:0.410" (10.41mm)
- Insulation Height:0.090" (2.29mm)
- Contact Shape:Square
- Contact Finish - Mating:Gold
- Contact Finish Thickness - Mating:15.0µin (0.38µm)
- Contact Finish - Post:Tin
- Contact Material:Copper Alloy
- Insulation Material:Liquid Crystal Polymer (LCP)
- Features:-
- Operating Temperature:-65°C ~ 105°C
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:Black
- Current Rating (Amps):3A
- Voltage Rating:-
Related Products

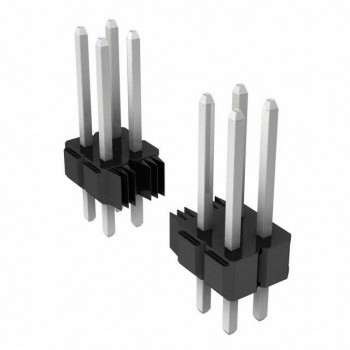

WIRE TO BOARD
- 1: $6.85712

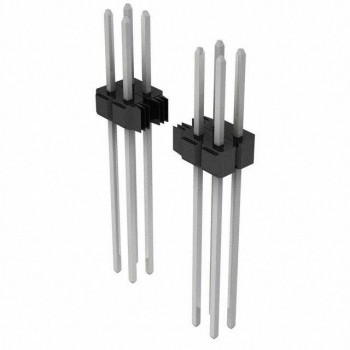

WIRE TO BOARD
