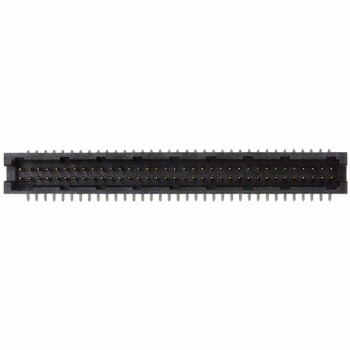

0025026070
Woodhead - Molex- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HEADER VERT 70POS 2.54MM
- CategoryRectangular Connectors - Headers, Male Pins
- Datasheet 0025026070 Datasheet
-
ECAD Model
- Share
In Stock: 197
Can ship immediately
Pricing:
- 1$7.15835
- 540$6.72452
Quote It
Technical Details
- Series:C-Grid 70204
- Package:Tray
- Part Status:Active
- Connector Type:Header
- Contact Type:Male Pin
- Pitch - Mating:0.100" (2.54mm)
- Number of Positions:70
- Number of Rows:2
- Row Spacing - Mating:0.100" (2.54mm)
- Number of Positions Loaded:All
- Style:Board to Board
- Shrouding:Shrouded - 4 Wall
- Mounting Type:Through Hole
- Termination:Solder
- Fastening Type:Push-Pull
- Contact Length - Mating:0.268" (6.80mm)
- Contact Length - Post:0.110" (2.79mm)
- Overall Contact Length:0.515" (13.08mm)
- Insulation Height:0.550" (13.97mm)
- Contact Shape:Square
- Contact Finish - Mating:Gold
- Contact Finish Thickness - Mating:15.0µin (0.38µm)
- Contact Finish - Post:Tin
- Contact Material:Copper Alloy
- Insulation Material:Polyamide (PA), Nylon, Glass Filled
- Features:-
- Operating Temperature:-
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:Black
- Current Rating (Amps):-
- Voltage Rating:-
