1-1393586-8
TE Connectivity AMP Connectors
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HEADER VERT 26POS 2.54MM
- CategoryRectangular Connectors - Headers, Male Pins
- Datasheet 1-1393586-8 Datasheet
-
ECAD Model
- Share
In Stock: 115
Can ship immediately
Pricing:
- 1$7.92288
- 240$5.44754
Quote It
Technical Details
- Series:-
- Package:Bulk
- Part Status:Active
- Connector Type:Header
- Contact Type:Male Pin
- Pitch - Mating:0.100" (2.54mm)
- Number of Positions:26
- Number of Rows:2
- Row Spacing - Mating:0.100" (2.54mm)
- Number of Positions Loaded:All
- Style:-
- Shrouding:Shrouded - 4 Wall
- Mounting Type:Through Hole
- Termination:Solder
- Fastening Type:-
- Contact Length - Mating:0.228" (5.80mm)
- Contact Length - Post:0.114" (2.90mm)
- Overall Contact Length:-
- Insulation Height:0.496" (12.60mm)
- Contact Shape:Square
- Contact Finish - Mating:Gold-Palladium
- Contact Finish Thickness - Mating:-
- Contact Finish - Post:-
- Contact Material:-
- Insulation Material:-
- Features:Keying Slot
- Operating Temperature:-
- Ingress Protection:-
- Material Flammability Rating:-
- Insulation Color:-
- Current Rating (Amps):-
- Voltage Rating:-
Related Products

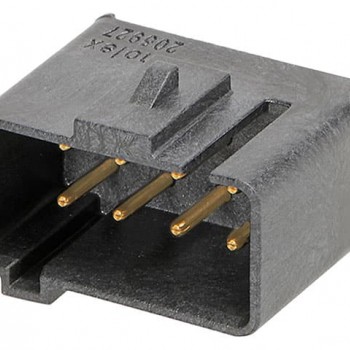

MULTICAT HEADER 8CKT, KEY A, P=4
