800-10-057-10-002000
Mill-Max
- Lifecycle status Active
- RoHS RoHS Compliant

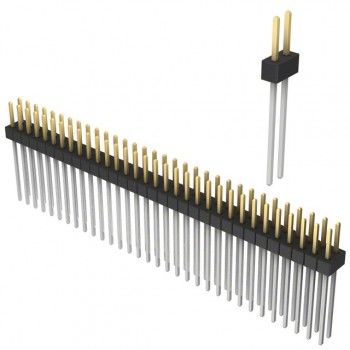

- DescriptionCONN HEADER VERT 57POS 2.54MM
- CategoryRectangular Connectors - Headers, Male Pins
- Datasheet 800-10-057-10-002000 Datasheet
-
ECAD Model
- Share
In Stock: 114
Can ship immediately
Pricing:
- 1$8.07
- 10$7.73168
- 25$7.05941
- 50$6.72328
- 100$6.38714
- 250$5.71483
- 500$5.37866
Quote It
Technical Details
- Series:800
- Package:Bulk
- Part Status:Active
- Connector Type:Header
- Contact Type:Male Pin
- Pitch - Mating:0.100" (2.54mm)
- Number of Positions:57
- Number of Rows:1
- Row Spacing - Mating:-
- Number of Positions Loaded:All
- Style:Board to Board
- Shrouding:Unshrouded
- Mounting Type:Through Hole
- Termination:Solder
- Fastening Type:Push-Pull
- Contact Length - Mating:0.142" (3.61mm)
- Contact Length - Post:0.118" (3.00mm)
- Overall Contact Length:0.385" (9.77mm)
- Insulation Height:0.110" (2.79mm)
- Contact Shape:Circular
- Contact Finish - Mating:Gold
- Contact Finish Thickness - Mating:10.0µin (0.25µm)
- Contact Finish - Post:Gold
- Contact Material:Brass Alloy
- Insulation Material:Polycyclohexylenedimethylene Terephthalate (PCT)
- Features:-
- Operating Temperature:-
- Ingress Protection:-
- Material Flammability Rating:-
- Insulation Color:Black
- Current Rating (Amps):-
- Voltage Rating:-
