929647-05-31-I
3M
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HEADER VERT 31POS 2.54MM
- CategoryRectangular Connectors - Headers, Male Pins
- Datasheet 929647-05-31-I Datasheet
-
ECAD Model
- Share
In Stock: 178
Can ship immediately
Pricing:
- 1$8.73
- 10$8.348
- 25$7.5888
- 50$7.2094
- 100$7.0196
- 250$6.26076
- 500$5.88132
Quote It
Technical Details
- Series:929
- Package:Bulk
- Part Status:Active
- Connector Type:Header, Breakaway
- Contact Type:Male Pin
- Pitch - Mating:0.100" (2.54mm)
- Number of Positions:31
- Number of Rows:1
- Row Spacing - Mating:-
- Number of Positions Loaded:All
- Style:Board to Board
- Shrouding:Unshrouded
- Mounting Type:Through Hole
- Termination:Solder
- Fastening Type:Push-Pull
- Contact Length - Mating:0.235" (5.97mm)
- Contact Length - Post:0.610" (15.49mm)
- Overall Contact Length:0.945" (24.00mm)
- Insulation Height:0.100" (2.54mm)
- Contact Shape:Square
- Contact Finish - Mating:Gold
- Contact Finish Thickness - Mating:10.0µin (0.25µm)
- Contact Finish - Post:Gold
- Contact Material:Copper Alloy
- Insulation Material:Polybutylene Terephthalate (PBT), Polyester, Glass Filled
- Features:-
- Operating Temperature:-40°C ~ 105°C
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:Black
- Current Rating (Amps):2.5A
- Voltage Rating:-
Related Products

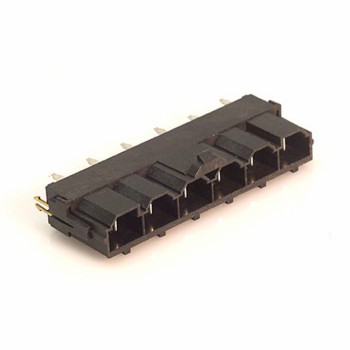

VERIO BC 12SIGNAL PIP
