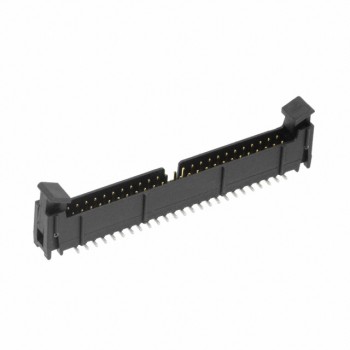

808-10-040-10-151000
Mill-Max
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HEADER VERT 40POS
- CategoryRectangular Connectors - Headers, Male Pins
- Datasheet 808-10-040-10-151000 Datasheet
-
ECAD Model
- Share
In Stock: 105
Can ship immediately
Pricing:
- 1$10.80893
- 14$9.82732
- 28$9.58192
- 56$8.84478
- 105$8.35345
- 252$7.61638
- 504$7.12499
- 1,001$6.53533
Quote It
Technical Details
- Series:808
- Package:Tube
- Part Status:Active
- Connector Type:Header
- Contact Type:Male Pin
- Pitch - Mating:-
- Number of Positions:40 (30 + 10 Power)
- Number of Rows:-
- Row Spacing - Mating:-
- Number of Positions Loaded:All
- Style:Board to Board
- Shrouding:Shrouded - 4 Wall
- Mounting Type:Through Hole
- Termination:Solder
- Fastening Type:Push-Pull
- Contact Length - Mating:-
- Contact Length - Post:-
- Overall Contact Length:-
- Insulation Height:0.375" (9.53mm)
- Contact Shape:Circular
- Contact Finish - Mating:Gold
- Contact Finish Thickness - Mating:10.0µin (0.25µm)
- Contact Finish - Post:-
- Contact Material:-
- Insulation Material:Polyphenylene Sulfide (PPS)
- Features:-
- Operating Temperature:-55°C ~ 125°C
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:Black
- Current Rating (Amps):-
- Voltage Rating:-
