ATM15-08PC-BM04
Tuchel / Amphenol
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HEADER VERT 8POS
- CategoryRectangular Connectors - Headers, Male Pins
-
ECAD Model
- Share
In Stock: 104
Can ship immediately
Pricing:
- 1$11.06
- 20$11.06
Quote It
Technical Details
- Series:BoardLock™ ATM
- Package:Tray
- Part Status:Active
- Connector Type:Receptacle
- Contact Type:Male Pin
- Pitch - Mating:-
- Number of Positions:8
- Number of Rows:2
- Row Spacing - Mating:-
- Number of Positions Loaded:All
- Style:Board to Cable/Wire
- Shrouding:Shrouded - 4 Wall
- Mounting Type:Through Hole
- Termination:Solder
- Fastening Type:Latch Holder
- Contact Length - Mating:-
- Contact Length - Post:0.120" (3.05mm)
- Overall Contact Length:-
- Insulation Height:1.189" (30.20mm)
- Contact Shape:Circular
- Contact Finish - Mating:Tin
- Contact Finish Thickness - Mating:-
- Contact Finish - Post:Tin
- Contact Material:Copper Alloy
- Insulation Material:Thermoplastic
- Features:Board Guide, Mating Flange, Mounting Flange, Potting Wall
- Operating Temperature:-55°C ~ 125°C
- Ingress Protection:IP67
- Material Flammability Rating:-
- Insulation Color:Gray
- Current Rating (Amps):7.5A
- Voltage Rating:250V
Related Products

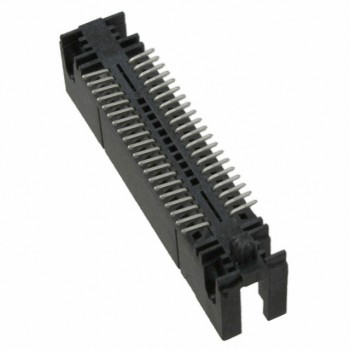

CONN HEADER R/A 51POS 2MM
